S31810T-24.000-X1-LE0.78-R

Oscillators Overview

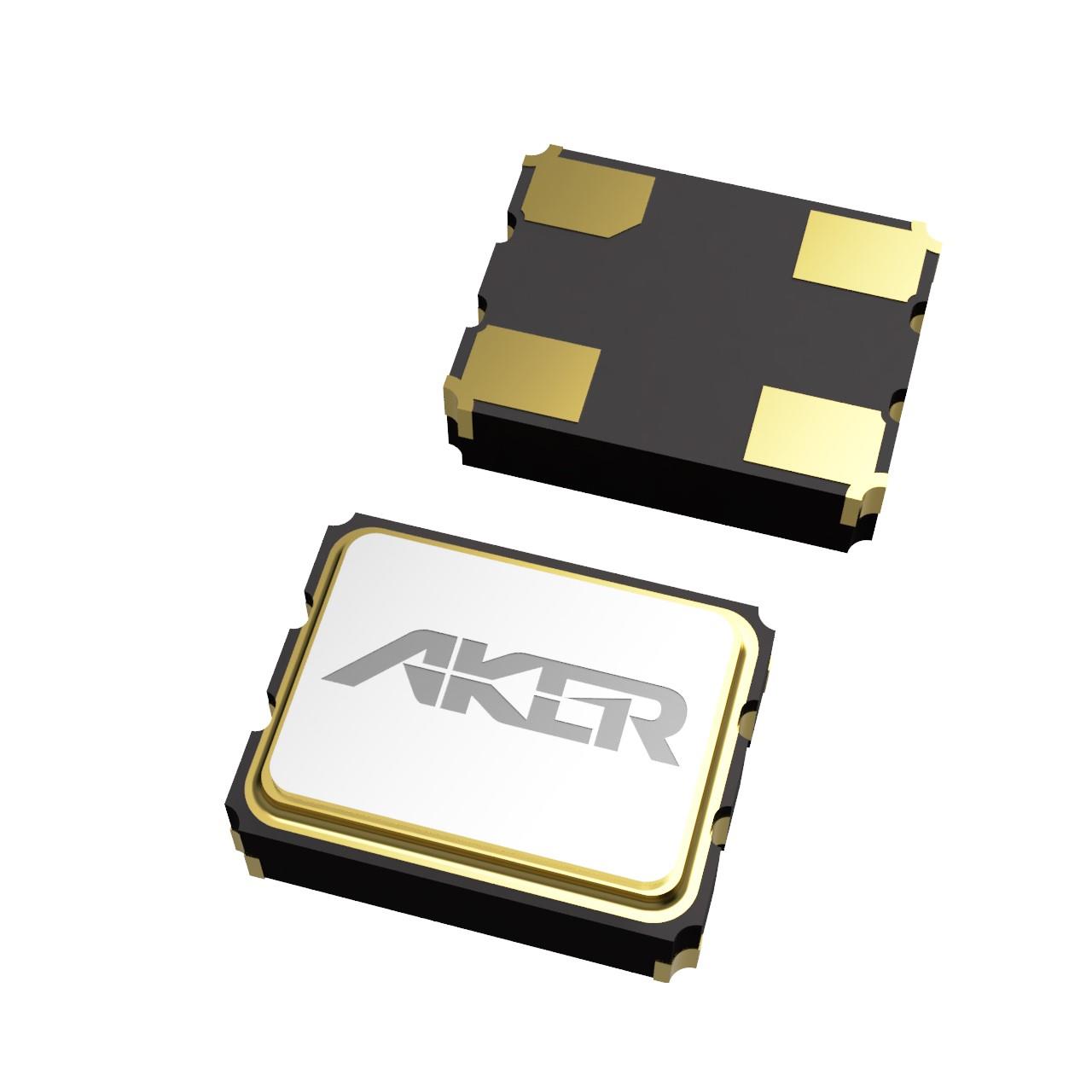

The S31810T-24.000-X1-LE0.78-R is a standard HCMOS crystal oscillator manufactured by Aker Technology Corp. It operates at a frequency of 24 MHz and utilizes a 3.3V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 4-SMD, no-lead surface-mount package with a lead height of 0.78mm. This component is designed to provide low EMI performance suitable for various electronic applications requiring precise timing signals.

Oscillators Feature Summary

• HCMOS output interface for digital logic compatibility
• Integrated enable and disable control functionality
• Low electromagnetic interference design characteristics
• Surface-mount package configuration for automated assembly

Oscillators Applications

• Microprocessor-based systems
• Telecommunications equipment
• Data storage and delivery devices
• Computer products and instrumentation

Oscillators Procurement Notes

Verify the specific lead height requirement of 0.78mm against your PCB footprint specifications before procurement. Confirm that the 3.3V operating voltage aligns with your system's power rails. Ensure the enable/disable pinout matches your circuit design requirements. Check the manufacturer's current availability status as standard lead times may vary. Validate the package dimensions to ensure proper placement during assembly.

Oscillators Selection Notes

Select this component when a 24 MHz clock signal is required for HCMOS-compatible circuits. Consider the enable/disable feature if power management is necessary for the application. The low EMI characteristic makes it suitable for sensitive environments. Verify that the 4-SMD package fits within the available board space constraints. Ensure the operating temperature range meets the environmental conditions of the end product.

Oscillators Part Context

This oscillator belongs to Aker Technology's standard XO series, which provides reliable frequency control solutions. The company specializes in frequency control products for automotive, telecommunications, and computer industries. This specific model represents a surface-mount option designed for modern electronics manufacturing processes. It complements their broader portfolio of crystals and oscillators used in timing-critical applications.

Oscillators Replacement Considerations

The S11810T-25.000-X1-R is a similar HCMOS oscillator from the same manufacturer but operates at 25 MHz. Cross-referencing requires verifying frequency tolerance and package compatibility. Other models in the S31810T series may offer different frequencies or voltage levels. Always consult official datasheets to confirm electrical parameter alignment before substitution.
