S33320-40.000-A-X1-R

Oscillators Overview

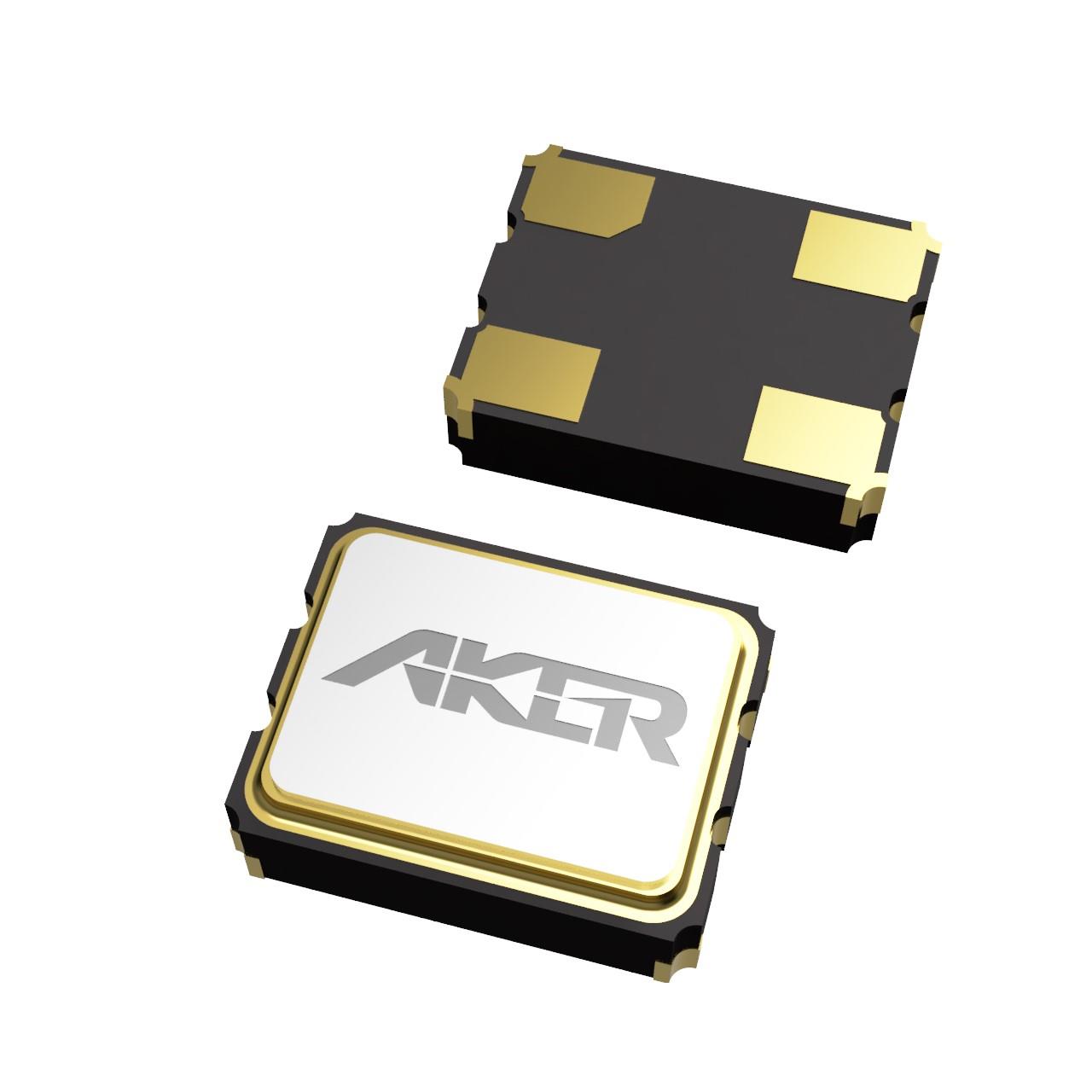

The S33320-40.000-A-X1-R is a surface-mount clock oscillator manufactured by Aker Technology Corp. It operates at an output frequency of 40MHz with a frequency stability of ±50 ppm. The device utilizes CMOS output levels and functions within a supply voltage range of 1.8V to 3.3V. It features a four-pin package with dimensions of 3.2mm in length, 2.5mm in width, and 1.1mm in height. The component supports an operating temperature range from -40°C to 85°C and complies with RoHS and Pb-free standards.

Oscillators Feature Summary

• Provides stable 40MHz timing signals via CMOS output interface
• Operates on low voltage supplies ranging from 1.8V to 3.3V
• Designed for surface-mount assembly in compact electronic systems

Oscillators Applications

• Microprocessor-based applications requiring precise clock synchronization
• Telecommunications equipment utilizing standard frequency references
• Data storage and delivery systems needing reliable timing sources

Oscillators Procurement Notes

Verify the specific suffix 'A' against official Aker Technology documentation to confirm exact electrical tolerances and pinout configurations. Ensure the selected variant matches the required load capacitance and output drive strength for the target circuit design. Cross-reference the datasheet revision date to guarantee compatibility with current manufacturing standards and material compliance requirements.

Oscillators Selection Notes

Select this component when a 40MHz CMOS clock signal is required for space-constrained designs. The 3.2x2.5mm footprint suits high-density PCB layouts. Verify that the ±50 ppm stability meets system jitter requirements. Confirm that the 1.8V to 3.3V operating range aligns with the available power rails in the application environment.

Oscillators Part Context

This part belongs to the S3 series of surface-mount oscillators from Aker Technology. These devices are engineered for general-purpose timing needs in consumer and industrial electronics. The series offers a balance of performance and size, targeting applications where standard frequency control is essential without the complexity of higher-end TCXO solutions.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
