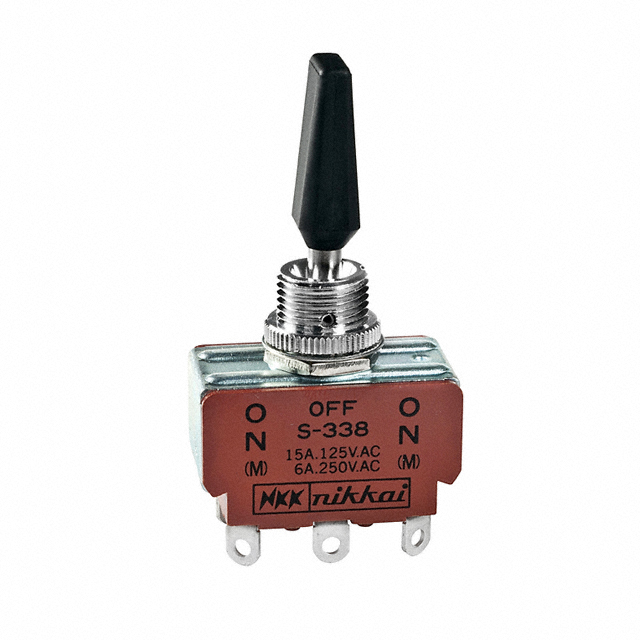

S338R is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE DPDT 15A 125V. Review the specifications below when checking this part for your BOM.
Toggle Switches specifications for S338R
- Description：SWITCH TOGGLE DPDT 15A 125V
- Series：S300R
- Mfr：NKK Switches
- Package：Bulk
- Mounting Type：Panel Mount
- Circuit：DPDT
- Switch Function：Mom-Off-Mom
- Current Rating (Amps)：15A (AC), 20A (DC)
- Voltage Rating - AC：125 V
- Voltage Rating - DC：30 V
- Actuator Type：Flatted
- Actuator Length：27.00mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：Solder Lug
- Panel Cutout Dimensions：Circular - 12.50mm Dia
- Bushing Thread：M12 x 1
- Ingress Protection：-
- Features：Black Actuator
- Operating Temperature：-10°C ~ 70°C
Toggle Switches datasheet and documents for S338R
