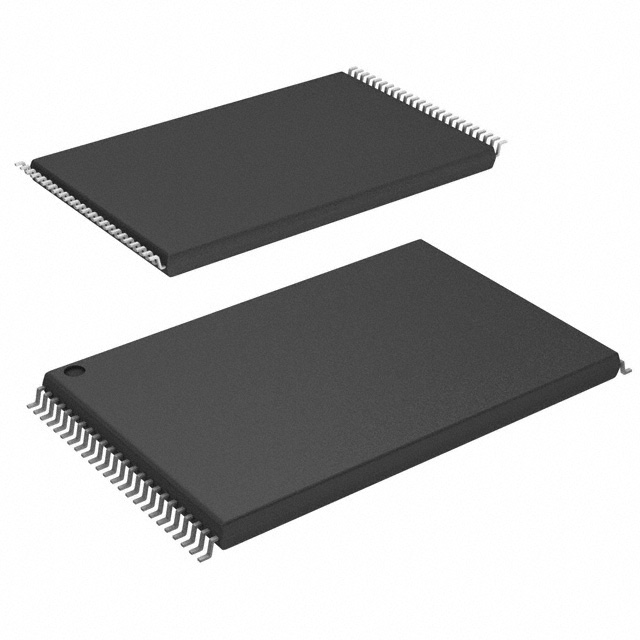

S34ML08G201TFV000 is listed in the Memory IC range at ChipApex. The manufacturer field lists Cypress Semiconductor Corp. Its product description is IC FLASH 8GBIT PARALLEL 48TSOP I. Review the specifications below when checking this part for your BOM.
Memory IC specifications for S34ML08G201TFV000
- Description：IC FLASH 8GBIT PARALLEL 48TSOP I
- Series：ML-2
- Mfr：Cypress Semiconductor Corp
- Package：Bulk
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NAND
- Memory Size：8Gbit
- Memory Organization：1G x 8
- Memory Interface：Parallel
- Clock Frequency：-
- Write Cycle Time - Word, Page：25ns
- Voltage - Supply：2.7V ~ 3.6V
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Package / Case：48-TFSOP (0.724", 18.40mm Width)
- Supplier Device Package：48-TSOP I
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for S34ML08G201TFV000
Memory IC Overview
The S34ML08G201TFV000 is an 8-Gbit NAND Flash memory device manufactured by Cypress Semiconductor Corp. It features a parallel x8 I/O interface and operates with a supply voltage range of 2.7V to 3.6V. The component utilizes Single-Level Cell (SLC) technology and includes 4-bit ECC support for data integrity. It is housed in a 48-TFSOP package with a width of 18.40mm. The device supports a write cycle time of 25ns and functions within an operating temperature range of -40°C to 85°C.
Memory IC Feature Summary
- Supports 4-bit Error Correction Code (ECC) for enhanced data reliability
- Utilizes Single-Level Cell (SLC) NAND technology for consistent performance
- Features a parallel x8 I/O interface for high-speed data transfer
Memory IC Applications
- Embedded storage systems requiring robust data integrity
- Industrial control applications operating in wide temperature ranges
- Consumer electronics utilizing parallel flash interfaces
Memory IC Procurement Notes
Verify the specific suffix '01' against the official Cypress datasheet to confirm pinout and electrical characteristics match your design requirements. Ensure the 48-TFSOP package dimensions align with your PCB footprint. Confirm that the 2.7V-3.6V supply range is compatible with your system's power rails before finalizing procurement.
Memory IC Selection Notes
Select this component when an 8-Gbit capacity with parallel x8 interface is required. It is suitable for designs needing SLC endurance and built-in ECC capabilities. Consider the 48-TFSOP package size for space-constrained boards. Verify compatibility with host controllers supporting parallel NAND protocols and the specified voltage levels.
Memory IC Part Context
This part belongs to the Cypress S34ML08G2 series of 8-Gb NAND Flash memories. These devices are designed for applications demanding high reliability and data protection through integrated ECC. The series offers various package options, with this model specifically utilizing the thin small-outline package format for surface-mount assembly.
Memory IC Replacement Considerations
Direct substitutes include other Cypress S34ML08G2 variants with identical pinouts and specifications. Verify equivalent capacity, interface type, and package dimensions when considering alternatives from other manufacturers.
