S34MS04G100BHI000Z is listed in the Memory IC range at ChipApex. The manufacturer field lists Spansion. Its product description is 4 GB ECC, 1.8V SLC NAND FLASH. Review the specifications below when checking this part for your BOM.
Memory IC specifications for S34MS04G100BHI000Z
- Description：4 GB ECC, 1.8V SLC NAND FLASH
- Series：*
- Mfr：Spansion
- Package：Bulk
- Memory Type：-
- Memory Format：-
- Technology：-
- Memory Size：-
- Memory Organization：-
- Memory Interface：-
- Clock Frequency：-
- Write Cycle Time - Word, Page：-
- Voltage - Supply：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for S34MS04G100BHI000Z
Memory IC Overview

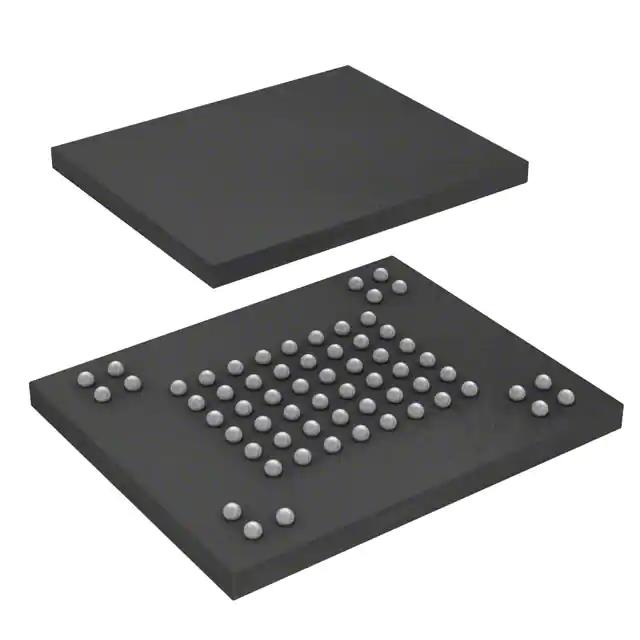

The S34MS04G100BHI000Z is a 4 Gb (512 M x 8) Single-Level Cell (SLC) NAND Flash memory device manufactured by Spansion. It operates at a supply voltage of 1.8V and features an x8 I/O interface. The component integrates Error Correction Code (ECC) capabilities to ensure data integrity during read and write operations. It is housed in a PBGA63 package, providing a compact form factor suitable for space-constrained embedded applications requiring reliable non-volatile storage.
Memory IC Feature Summary
- Integrates hardware-based Error Correction Code (ECC) functionality to maintain data accuracy.
- Utilizes Single-Level Cell (SLC) technology for enhanced endurance and reliability compared to multi-level cell alternatives.
- Operates with a low 1.8V power supply specification for energy-efficient performance.
Memory IC Applications
- Embedded systems requiring robust non-volatile data storage
- Industrial control units needing high endurance flash memory
- Consumer electronics utilizing SLC NAND for critical firmware retention
Memory IC Procurement Notes
Verify the complete part number including the suffix Z against official Spansion documentation to confirm RoHS compliance status and specific package variations. Ensure compatibility with 1.8V logic levels in the target design. Cross-reference datasheet revisions to confirm pinout and electrical characteristics match the intended application requirements before procurement.
Memory IC Selection Notes
Select this component when ECC support is required within the memory controller architecture. The 1.8V operation makes it suitable for modern low-power embedded designs. Consider the PBGA63 package constraints for PCB layout. Verify that the host system supports the x8 interface width and timing parameters specified in the official datasheet for proper integration.
Memory IC Part Context
This device belongs to the Spansion S34MS series of NAND Flash memories. The series typically offers various densities and interface options. The S34MS04G variant specifically denotes the 4Gb capacity. The BHI suffix indicates specific package and temperature grade configurations defined by the manufacturer for this particular SKU.
Memory IC Replacement Considerations
Compatible substitutes include other S34MS04G variants from Spansion or Cypress, such as S34MS04G200BHI000, provided interface voltages and package types are verified. Ensure any replacement maintains the x8 interface and ECC support if required by the system design.
