S3A3204R0M-JI1AT

Memory IC Overview

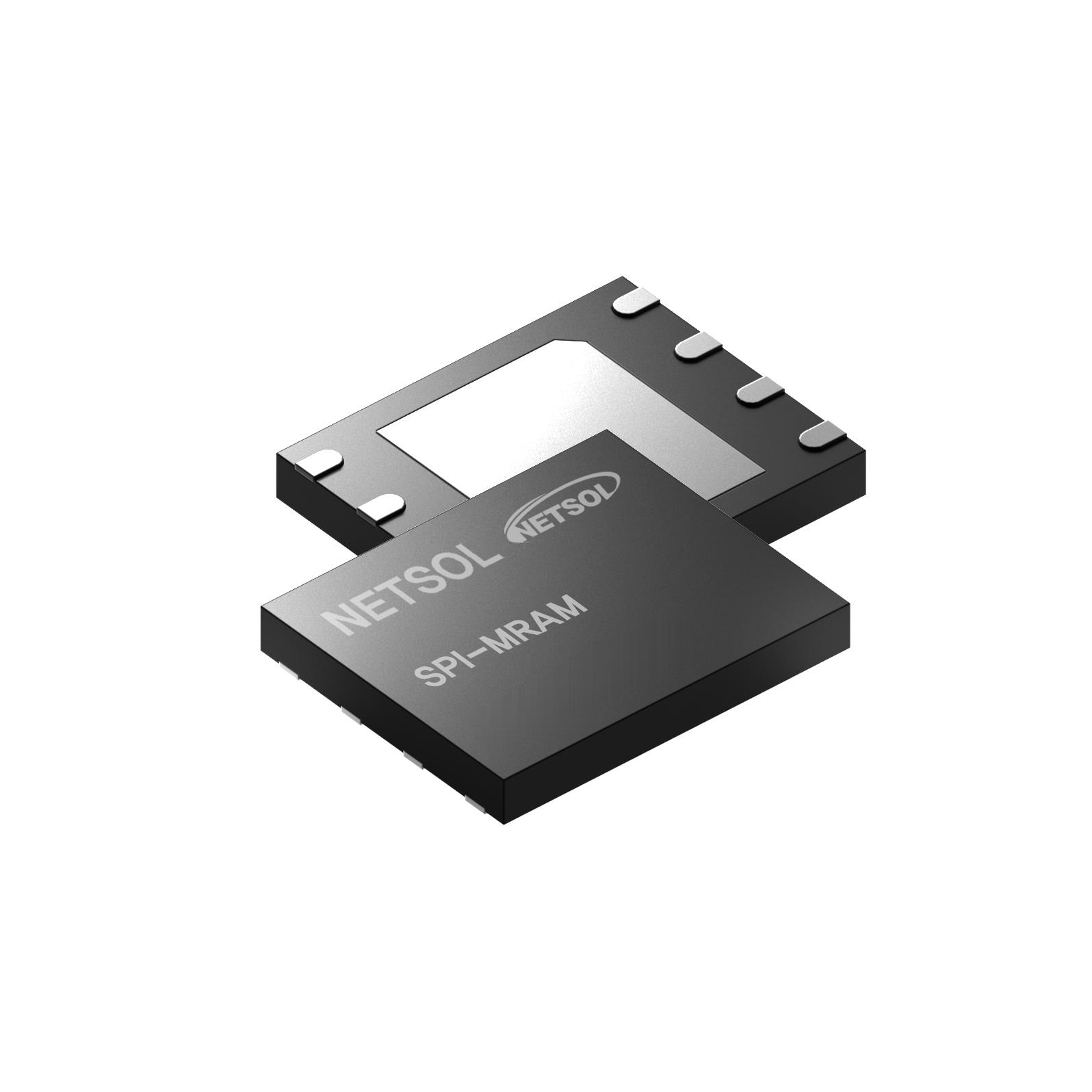

The Netsol S3A3204R0M-JI1AT is a 32Mb SPI MRAM component utilizing STT-MRAM technology. It supports Single, Dual, and Quad IO SPI modes with SDR frequencies up to 108MHz and DDR up to 54MHz. The device operates on a single 1.8V supply (1.71V–1.98V). Key specifications include 10^14 write cycles endurance, 10-year data retention at 85°C, and no external ECC requirement. It features XIP capability, deep power down current of 60µA, and an augmented 512-byte nonvolatile area.

Memory IC Feature Summary

• Supports Single, Dual, and Quad IO SPI interface modes for flexible communication
• Features Execute-In-Place (XIP) functionality for direct code execution from memory
• Provides hardware-based data protection including WP pin and block lock mechanisms
• Includes a unique 64-bit ID and user-writable 64-bit serial number

Memory IC Applications

• Embedded systems requiring high-speed non-volatile storage
• IoT devices needing low-power standby operation
• Industrial applications demanding high write endurance
• Secure applications utilizing hardware encryption and unique identification

Memory IC Procurement Notes

Verify the specific ordering suffix 'JI1AT' against the official Netsol datasheet to confirm package type and temperature grade. Ensure the design supports the required 1.8V operating voltage range. Confirm that the selected package variant matches the PCB footprint requirements specified in the datasheet.

Memory IC Selection Notes

Select this part for designs requiring high write endurance and low power consumption compared to traditional Flash. Ensure the host controller supports the necessary SPI modes (SDR/DDR) and XIP timing constraints. Verify compatibility with the 1.8V logic levels and check if the augmented 512-byte area meets specific configuration storage needs.

Memory IC Part Context

This component belongs to the Netsol S3A3204x0M family of 32Mb SPI MRAM devices. It shares core architecture with the S3A3204V0M but differs in operating voltage, supporting 1.8V instead of 3.3V. The family utilizes Spin-Transfer-Torque Magneto-resistive Random Access Memory technology for non-volatile data storage.

Memory IC Replacement Considerations

Direct substitutes within the same family include the S3A3204V0M series, though voltage differences must be accounted for. Cross-voltage replacements require careful level-shifting analysis. No other manufacturer equivalents are confirmed in the provided documentation.
