S3AM025-125.000-L-A-X-R

Oscillators Overview

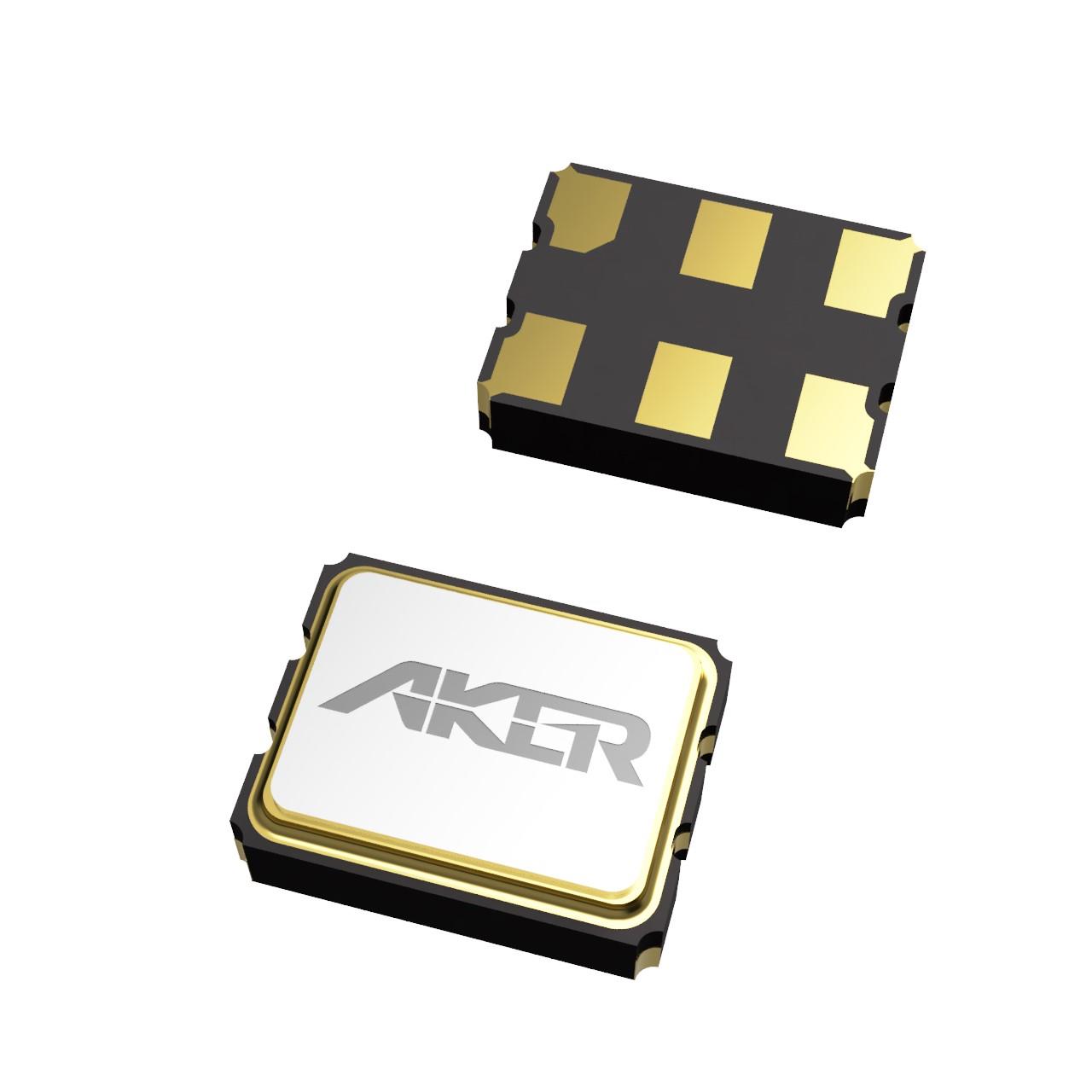

The S3AM025-125.000-L-A-X-R is a 125 MHz crystal oscillator (XO) manufactured by Aker Technology Corp. It utilizes LVDS output signaling and operates within a supply voltage range of 2.375V to 3.63V. The device features enable/disable control functionality and is housed in a compact 6-SMD, no lead package. This component is designed for high-frequency timing applications requiring precise clock signals.

Oscillators Feature Summary

• Generates a stable 125 MHz clock signal using LVDS output technology
• Includes hardware enable and disable control pins for power management
• Operates on a single supply voltage ranging from 2.375V to 3.63V

Oscillators Applications

• High-speed digital communication interfaces
• Data acquisition systems requiring precise timing
• Network equipment clock distribution

Oscillators Procurement Notes

Verify the specific package type and pinout configuration against the official datasheet before integration. Confirm that the LVDS output levels are compatible with the receiving circuitry. Ensure the supply voltage remains strictly within the 2.375V to 3.63V operational range to maintain frequency stability and prevent device damage during operation.

Oscillators Selection Notes

Select this model when LVDS signaling is required for noise immunity at 125 MHz. Consider the 6-SMD package size for board space constraints. Verify that the enable/disable feature aligns with system power sequencing requirements. Compare against other Aker oscillators if different output types or frequencies are needed.

Oscillators Part Context

This part belongs to Aker Technology's series of surface-mount crystal oscillators. The manufacturer specializes in frequency control products established in 1990. The S3A prefix typically denotes specific series characteristics within their portfolio, distinguishing it from standard XO or TCXO variants found in other product lines.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users must consult official cross-reference guides or contact the manufacturer directly for verified alternatives.
