S3D06065A

Single Diodes Overview

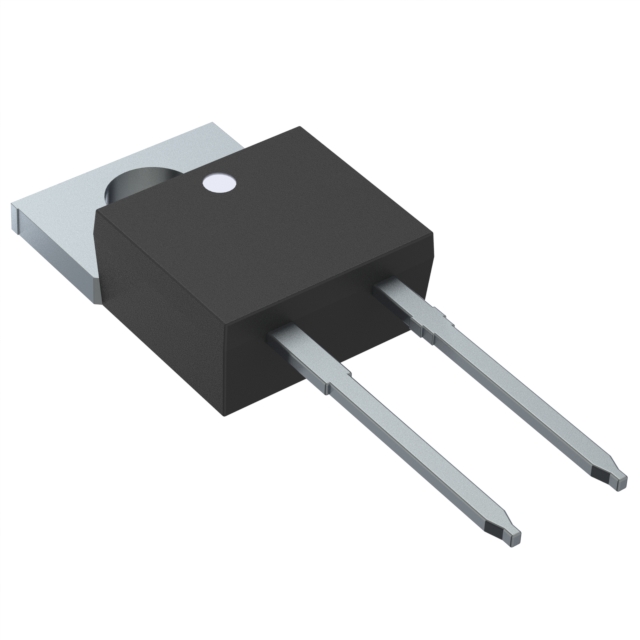

The S3D06065A is a Silicon Carbide (SiC) Schottky rectifier manufactured by SMC Diode Solutions. It features a maximum repetitive peak reverse voltage of 650V and an average forward current rating of 6A. The device utilizes a Through-Hole TO-220AC (TO-220-2) package for mounting. Key electrical characteristics include a maximum DC blocking voltage of 650V, a forward current of 6A, and a maximum junction temperature operation of 175°C. The component is designed to offer ultra-low switching loss and low total conduction losses.

Single Diodes Feature Summary

• Utilizes Silicon Carbide technology for high-performance rectification
• Features ultra-low switching loss capabilities
• Maintains switching speeds independent of operating temperature
• Designed for low total conduction losses

Single Diodes Applications

• High-frequency power conversion circuits
• Uninterruptible Power Supply (UPS) systems
• DC-DC converters requiring high efficiency

Single Diodes Procurement Notes

Verify the specific datasheet version from SMC Diode Solutions to confirm exact thermal resistance values and mechanical dimensions prior to integration. Ensure that the TO-220AC package footprint matches the PCB design requirements. Confirm that the 175°C junction temperature rating aligns with the system's thermal management strategy. Cross-reference the part number with official manufacturer catalogs to ensure authenticity and active lifecycle status.

Single Diodes Selection Notes

Select this component when high-temperature operation up to 175°C is required. Choose the S3D06065A for applications demanding reduced switching losses compared to standard silicon diodes. Consider the TO-220AC through-hole package if board space allows for larger components. Evaluate the 6A current rating against peak load requirements to ensure adequate margin. Verify compatibility with high-voltage environments up to 650V.

Single Diodes Part Context

This component belongs to the S3D series of Silicon Carbide Schottky rectifiers from SMC Diode Solutions. The series is engineered for high-efficiency power electronics. The S3D06065A specifically targets medium-power applications where thermal performance and switching speed are critical. It represents a transition from traditional silicon-based solutions to wide-bandgap semiconductor technologies.

Single Diodes Replacement Considerations

Consult official substitution guides from SMC Diode Solutions for verified equivalents. Ensure any replacement maintains the 650V voltage rating and 6A current capacity. Verify package compatibility with the existing TO-220AC footprint. Check that the alternative device supports 175°C junction temperatures.
