S463AH-868

$16.63

Description：RF ANT 868MHZ WHIP STR RP-SMA ML
Series：-
Mfr：Nearson Inc.
Package：Bulk

SKU:083f365d9421 Category: RF Antennas Brand: Nearson Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S463AH-868 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 868MHZ WHIP STR RP-SMA ML. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for S463AH-868

Description：RF ANT 868MHZ WHIP STR RP-SMA ML
Series：-
Mfr：Nearson Inc.
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：868MHz
Frequency Range：867MHz ~ 869MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.929" (176.00mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for S463AH-868

S463AH-868

Antennas RF Overview

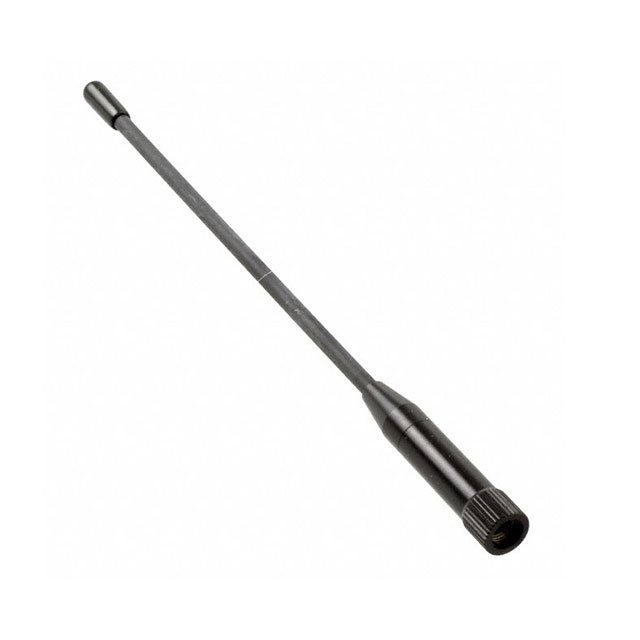

The Nearson S463AH-868 is a straight whip RF antenna designed for operation within the 867MHz to 869MHz frequency band, centered at 868MHz. It features a gain of 2dBi and maintains a Voltage Standing Wave Ratio (VSWR) of 2. The component utilizes an RP-SMA male connector for termination and employs a connector mount type. The maximum height of the antenna is specified as 176.00mm (6.929 inches).

Antennas RF Feature Summary

Straight whip design optimized for specific ISM band operations.
Fixed gain performance with standard VSWR characteristics.
Compatible with RP-SMA male interface connections.

Antennas RF Applications

Industrial, Scientific, and Medical (ISM) radio equipment.
Wireless sensor networks operating in the 868MHz region.
Low-power remote control systems.

Antennas RF Procurement Notes

Verify the exact part number suffix against official Nearson documentation to ensure correct connector polarity and mechanical dimensions. Confirm that the RP-SMA male termination matches the receiving device interface. Check RoHS compliance status if environmental regulations apply to the assembly process. Ensure the mounting configuration supports the specified maximum height and weight requirements.

Antennas RF Selection Notes

Select this model when a fixed-gain, omnidirectional radiation pattern is required for the 867-869MHz band. The straight whip form factor suits applications where vertical polarization is necessary. Consider the physical dimensions and connector type during PCB or chassis layout planning. This component is suitable for environments requiring reliable RF transmission without complex tuning mechanisms.

Antennas RF Part Context

This antenna belongs to the S463 series from Nearson Inc., which offers various configurations for different frequency bands. The S463AH variant specifically denotes the 868MHz version with an RP-SMA male connector. Other variants in the series may differ in frequency, gain, or connector type, necessitating careful identification based on the full part number.

Antennas RF Replacement Considerations

Direct substitutes include other Nearson models within the S463 family that share identical electrical parameters and mechanical interfaces. Verify compatibility with any alternative part numbers by cross-referencing the frequency range, gain, and connector specifications in their respective datasheets.
