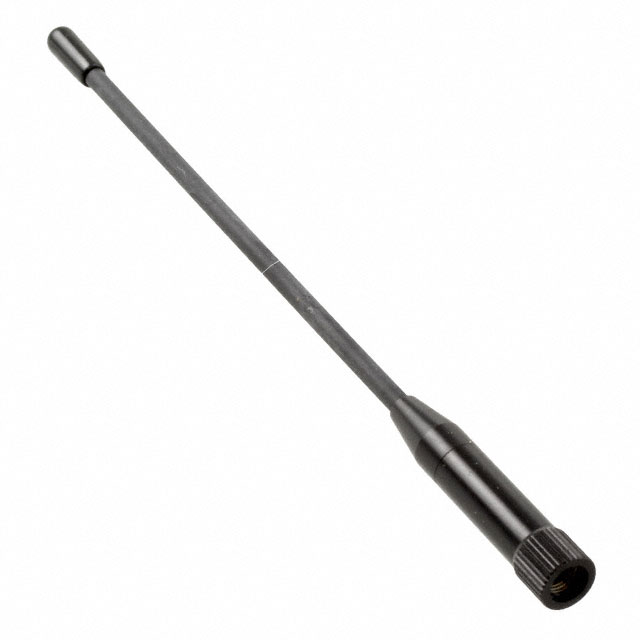

S463AH-915 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 915MHZ WHIP STR RP-SMA ML. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for S463AH-915
- Description：RF ANT 915MHZ WHIP STR RP-SMA ML
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：915MHz
- Frequency Range：902MHz ~ 928MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：6.929" (176.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for S463AH-915
Antennas RF Overview
The S463AH-915 is a UHF RF antenna manufactured by Nearson Inc., designed for operation within the 902MHz to 928MHz frequency range. This specific model features a straight whip antenna type with a gain of 2dBi and a VSWR of 2. It utilizes an RP-SMA male connector for mounting purposes. The component is classified as active status and belongs to the UHF frequency group, covering 300MHz to 1GHz.
Antennas RF Feature Summary
- Straight whip antenna design for reliable signal transmission
- RP-SMA male connector interface for secure mounting
- Optimized for UHF band operations
Antennas RF Applications
- UHF wireless communication systems
- ISM band device connectivity
- RF telemetry applications
Antennas RF Procurement Notes
Verify the part number S463AH-915 against official Nearson Inc. documentation to confirm specifications. Ensure compatibility with RP-SMA male interfaces. Check for RoHS compliance status in current datasheets. Confirm active production status before procurement. Validate frequency range requirements against system design.
Antennas RF Selection Notes
Select this antenna when a straight whip design is required for UHF applications. Consider the 2dBi gain and 2 VSWR values for system link budget calculations. Ensure the RP-SMA male connector matches the host device interface. Verify that the 902-928MHz range aligns with regulatory ISM band allocations.
Antennas RF Part Context
This component is part of Nearson Inc.'s RF antenna portfolio, specifically targeting UHF frequencies. The S463 series includes variations such as the S463AM-915. The S463AH-915 distinguishes itself through its straight whip form factor and specific connector type, serving niche RF integration needs.
Antennas RF Replacement Considerations
The S463AM-915 is a related model from the same manufacturer. Verify if the AM variant offers different mechanical or electrical characteristics suitable for the application. Cross-reference connector types and gain specifications before substitution.
