S463AM-915

Antennas RF Overview

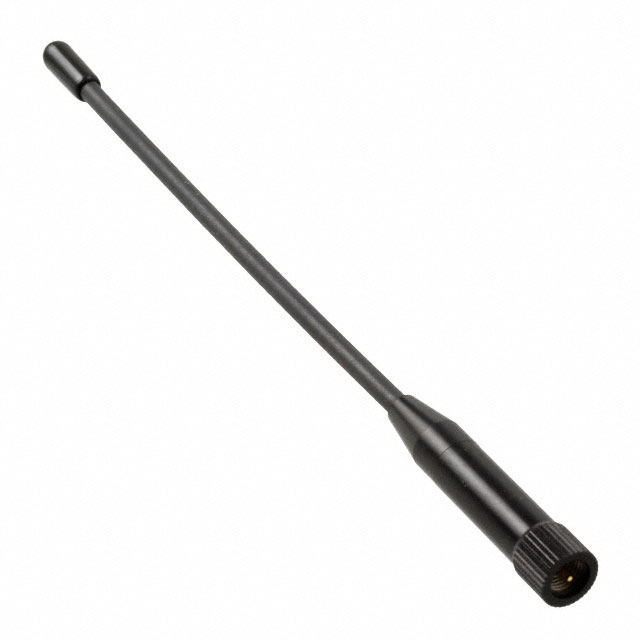

The S463AM-915 is a straight whip RF antenna manufactured by Nearson Inc., designed for operation in the 915 MHz ISM band. It features an SMA male connector mount type, allowing for direct attachment to compatible RF modules or transceivers. The antenna has a maximum height of 176.00 mm (6.929 inches). It is RoHS compliant and suitable for general RF applications requiring reliable signal transmission in the specified frequency range.

Antennas RF Feature Summary

• Straight whip design optimized for 915 MHz ISM band operations
• SMA male connector mount for straightforward integration with RF equipment
• RoHS compliant construction ensuring environmental safety standards

Antennas RF Applications

• Wireless sensor networks operating in the 915 MHz band
• Industrial automation systems requiring RF telemetry
• Embedded IoT devices needing external antenna connectivity

Antennas RF Procurement Notes

Verify that the receiving equipment utilizes an SMA female port to ensure mechanical compatibility with the S463AM-915's male connector. Confirm that the application environment does not require hermetic sealing, as standard mounting types are typically used. Check local regulations regarding 915 MHz transmission power limits before deployment.

Antennas RF Selection Notes

Select this component when a fixed-frequency, omnidirectional radiation pattern is required for 915 MHz applications. The straight whip form factor is ideal for space-constrained enclosures where vertical clearance is available. Ensure the host device supports the impedance matching typical for this class of antennas to maximize efficiency.

Antennas RF Part Context

This part belongs to the S463AM series from Nearson Inc., which offers various configurations for different frequency bands. The S463AM-915 specifically targets the North American ISM band. It serves as a drop-in replacement for other 915 MHz whip antennas with identical connector types, provided mechanical dimensions are compatible.

Antennas RF Replacement Considerations

Direct substitutes include other 915 MHz whip antennas with SMA male connectors from manufacturers like Laird or Diamond Antenna, provided gain and VSWR specifications meet system requirements. Verify physical height constraints, as the 176mm length may limit placement options.
