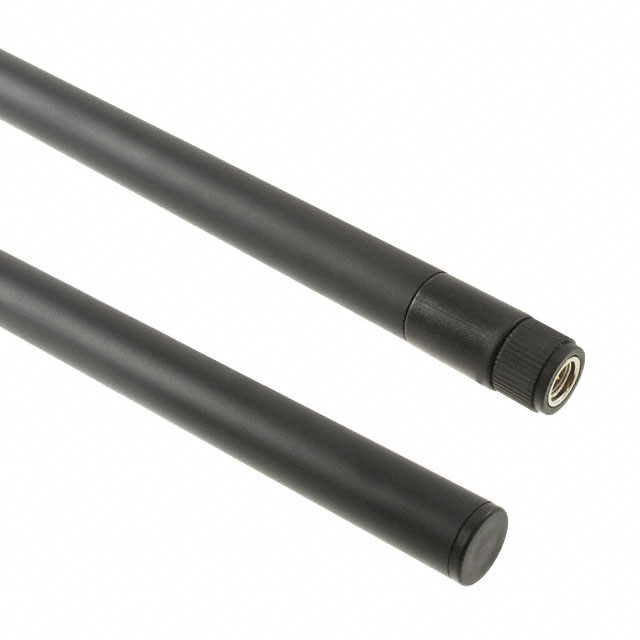

S469AM-915 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 915MHZ WHIP STR SMA MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for S469AM-915
- Description：RF ANT 915MHZ WHIP STR SMA MALE
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：915MHz
- Frequency Range：902MHz ~ 928MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：19.803" (503.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for S469AM-915
Antennas RF Overview
The S469AM-915 is a UHF RF antenna manufactured by Nearson Inc., designed for operation within the 902MHz to 928MHz frequency band with a center frequency of 915MHz. This straight whip antenna features an SMA male connector and utilizes a connector mount type for installation. The unit has a maximum height of 503.00mm (19.803 inches) and is classified as RoHS compliant. It is currently listed as an active component in the manufacturer's portfolio, intended for general RF applications requiring specific UHF band performance.
Antennas RF Feature Summary
- Straight whip design optimized for UHF frequency bands
- SMA male connector interface for secure attachment
- RoHS compliant construction for environmental standards
Antennas RF Applications
- General RF antenna systems
- UHF communication equipment integration
- Industrial wireless device connectivity
Antennas RF Procurement Notes
Verify the exact part number S469AM-915 against official Nearson Inc. documentation to ensure compatibility with your specific RF system requirements. Confirm that the SMA male connector matches your host device interface. Check current availability status as manufacturing lead times may vary. Ensure the operating frequency range of 902MHz to 928MHz aligns with your regulatory and technical needs before procurement.
Antennas RF Selection Notes
Select this model when a straight whip form factor is required for UHF applications. The fixed height of 503.00mm should be considered for spatial constraints in the installation environment. The SMA male connection dictates the mating hardware needed. Verify that the 915MHz center frequency meets the specific channel requirements of the target application compared to other variants in the S469AM series.
Antennas RF Part Context
This component belongs to the Nearson Inc. S469AM series of RF antennas. It shares the base product designation S469AM but is distinguished by its specific 915MHz tuning. Similar models in the family may offer different frequencies or connector types. The S469AM-915 represents a specialized variant within the broader UHF antenna lineup provided by the manufacturer.
Antennas RF Replacement Considerations
Direct substitutes include other Nearson S469AM series variants if frequency differences are acceptable. Cross-reference with S463AM-915 for similar specifications, though physical dimensions or minor electrical characteristics may differ. Always validate mechanical fit and impedance matching before swapping components.
