S53305T-50.000-R

Oscillators Overview

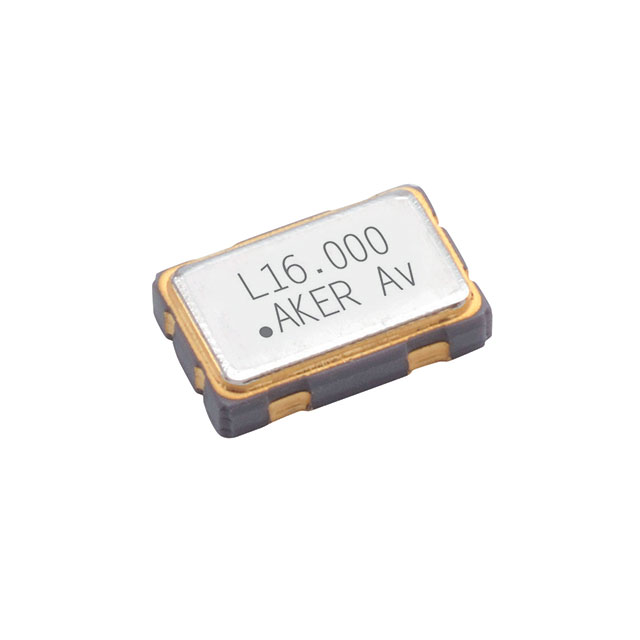

The S53305T-50.000-R is a surface-mount crystal oscillator manufactured by Aker Technology Corp, operating at a frequency of 50 MHz. It utilizes HCMOS output levels and functions within a supply voltage range of 1.8V to 3.3V. The device features a frequency stability of ±50 ppm and includes an enable/disable control pin for power management. Designed for industrial applications, it operates between -40°C and +85°C. The component is housed in a compact 4-SMD, No Lead package measuring 5mm x 3.2mm x 0.95mm.

Oscillators Feature Summary

• Provides stable 50 MHz clock signals with HCMOS output compatibility
• Features integrated enable/disable functionality for efficient power management
• Supports wide supply voltage operation from 1.8V to 3.3V
• Constructed with lead-free materials compliant with RoHS standards

Oscillators Applications

• Industrial control systems requiring precise timing references
• Embedded computing modules needing low-power clock sources
• Communication equipment utilizing standard CMOS logic interfaces

Oscillators Procurement Notes

Verify the specific suffix 'R' indicates reel packaging when ordering. Confirm that the enable/disable pin configuration matches your circuit design requirements. Ensure the 3.3V or 1.8V supply rail aligns with the selected HCMOS output level. Check for RoHS compliance documentation if environmental regulations apply to your assembly process.

Oscillators Selection Notes

Select this model when a 50 MHz frequency is required with HCMOS output swing. Consider the enable/disable feature if dynamic power saving is necessary. Verify the 4-pin SMD footprint fits your PCB layout constraints. Ensure the operating temperature range meets your application's environmental conditions.

Oscillators Part Context

This part belongs to the S5 series of surface-mount oscillators from Aker Technology. It represents a standard XO (Crystal Oscillator) variant designed for general-purpose digital circuits. The series offers various frequencies and packages, with this specific unit focusing on 50 MHz performance in a small form factor suitable for dense board layouts.

Oscillators Replacement Considerations

The S53305T-50.000-X-R is a documented substitute offering identical electrical specifications and pinout. Both parts share the same 50 MHz frequency, HCMOS output, and enable/disable functionality. Verify package dimensions remain compatible during substitution.
