S5A33025-156.250-P-R

Oscillators Overview

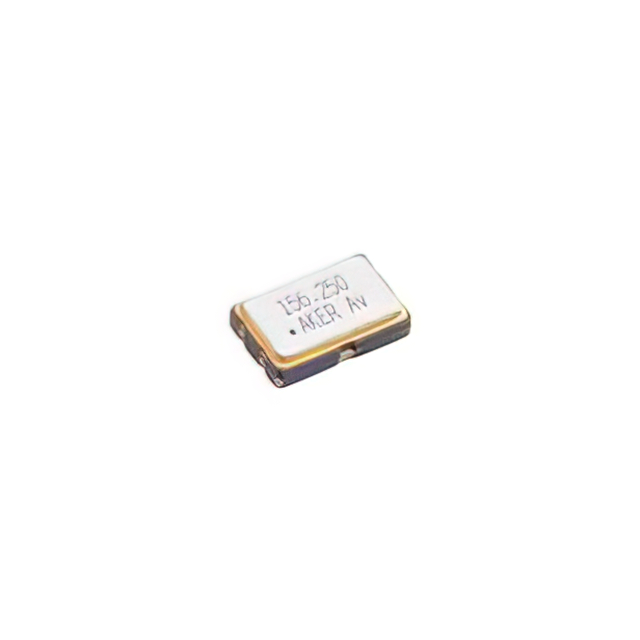

The S5A33025-156.250-P-R is a 156.25 MHz LVPECL crystal oscillator manufactured by Aker Technology Corp. It operates on a 3.3V supply and features an enable/disable control function. The component utilizes a 6-SMD, no-lead package with dimensions of 3.2mm x 2.5mm. It supports an operating temperature range from -40°C to 85°C and complies with RoHS standards for lead-free construction.

Oscillators Feature Summary

• Generates a stable 156.25 MHz clock signal using LVPECL output format
• Integrates hardware enable and disable control functionality
• Designed for high-speed serial applications requiring precise timing

Oscillators Applications

• Serial RapidIO interconnects
• PCI Express clock generation
• Gigabit Ethernet PHY synchronization

Oscillators Procurement Notes

Verify the specific suffix 'P-R' against the manufacturer's current datasheet to confirm pinout compatibility and active status. Ensure the required load capacitance matches the system design specifications before procurement. Confirm that the LVPECL voltage levels align with the receiving logic family to prevent signal integrity issues.

Oscillators Selection Notes

Select this component when a 156.25 MHz frequency is strictly required for SERDES or high-speed serial interfaces. The LVPECL output is suitable for differential signaling applications needing low jitter. Consider the 3.3V supply constraint and the need for an enable pin when designing the power management circuitry for the target application.

Oscillators Part Context

This part belongs to the S5A series of surface-mount oscillators from Aker Technology. The series is characterized by compact footprints and support for various output logic families. The S5A variant specifically targets high-performance digital systems requiring reliable clock sources in space-constrained environments.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data directly with the manufacturer for any potential replacements.
