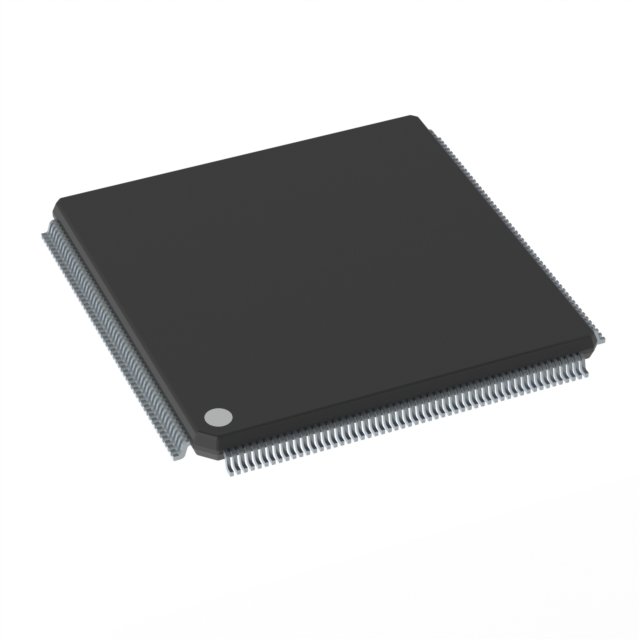

S6J32HELTNSC20000 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is TRAVEO-55NM. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for S6J32HELTNSC20000
- Description：TRAVEO-55NM
- Series：Traveo™ T1G
- Mfr：Infineon Technologies
- Package：Tray
- Core Processor：ARM® Cortex®-R5F
- Core Size：32-Bit
- Speed：240MHz
- Connectivity：CANbus, CSIO, Ethernet, I2C, LINbus, SPI, UART/USART
- Peripherals：DMA, I2S, LVD, POR, PWM, WDT
- Number of I/O：128
- Program Memory Size：4.171875MB (4.171875M x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：2.125M x 8
- Voltage - Supply (Vcc/Vdd)：1.1V ~ 5.5V
- Data Converters：A/D 50x12b
- Oscillator Type：Internal
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：216-TEQFP (24x24)
- Package / Case：216-LQFP Exposed Pad
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for S6J32HELTNSC20000
Microcontrollers Overview
The S6J32HELTNSC20000 is an automotive-grade microcontroller belonging to the Traveo II family, manufactured by Infineon Technologies. It integrates ARM Cortex-R5F processors and is designed for high-performance applications requiring robust functional safety. The device supports advanced connectivity options and offers extensive memory resources suitable for complex vehicle control systems.
Microcontrollers Feature Summary
- Integrates dual-core ARM Cortex-R5F processors for deterministic real-time performance
- Supports comprehensive functional safety mechanisms compliant with ISO 26262 standards
- Provides multiple high-speed communication interfaces including CAN FD and Ethernet
Microcontrollers Applications
- Advanced Driver Assistance Systems (ADAS)
- Vehicle gateway controllers
- Body electronics management units
Microcontrollers Procurement Notes
Verify the specific suffix codes against official documentation to ensure correct package type and temperature range. Confirm availability status as lead times may vary. Ensure compatibility with existing development tools and software libraries before procurement.
Microcontrollers Selection Notes
Select this component when high reliability and functional safety are critical requirements. Evaluate memory size and peripheral count against application needs. Consider thermal management solutions based on the intended operating environment and power consumption characteristics.
Microcontrollers Part Context
This part belongs to the Traveo II series, which targets demanding automotive applications. It represents a significant step up in processing power compared to previous generations, enabling more sophisticated algorithms and data processing capabilities within vehicle networks.
Microcontrollers Replacement Considerations
Check for direct pin-to-pin compatible alternatives within the same family. Verify that any substitute maintains identical functional safety integrity levels and interface compatibility.
