S70GL02GT11FHV020

Memory IC Overview

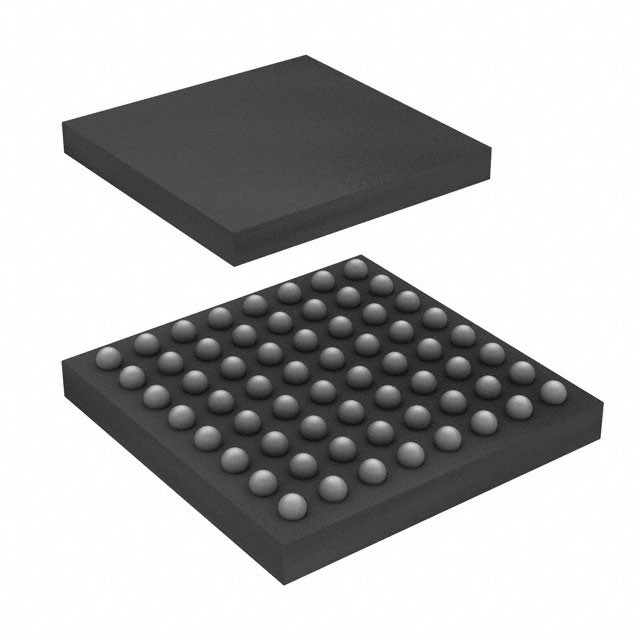

The S70GL02GT11FHV020 is a 2 Gbit (256 MB) parallel NOR flash memory device from Infineon's GL-T family. It utilizes 45-nm MIRRORBIT™ process technology and features a dual-die stack architecture within a single 64-ball fortified-BGA package. The device supports versatile I/O with VIO ranging from 1.65 V to VCC, while the core operates at 3.0 V (2.7 V to 3.6 V). Key performance metrics include a random access time of 110 ns and a page access time of 20 ns. It offers x8/x16 data bus options, a 512-byte programming buffer, and uniform 128-KB sector erase capabilities.

Memory IC Feature Summary

• Dual-die stack architecture integrating two 1024 Mb dies in a single 64-ball BGA package for high density.
• Versatile I/O support allowing flexible voltage levels between 1.65 V and VCC for system compatibility.
• Advanced sector protection mechanisms including volatile/non-volatile methods and a dedicated write protect pin.
• High-speed page mode reading with a 16-word buffer and efficient multi-byte programming via a 512-byte buffer.

Memory IC Applications

• Embedded applications requiring high-density non-volatile storage with fast access times.
• Industrial systems needing robust data integrity and extended temperature operation.
• Automotive electronics qualifying under AEC-Q100 standards for reliability.
• Systems utilizing Common Flash Interface (CFI) for standardized host controller integration.

Memory IC Procurement Notes

Verify the specific ordering suffix to confirm the Versatile I/O voltage range and sector protection configuration. The 'V' in the model indicates a VIO range of 1.65 V to VCC, distinct from standard 2.7 V minimum variants. Confirm the packaging type corresponds to your assembly requirements, as tray and tape-and-reel options exist. Ensure PCB design accounts for the 64-ball LSH fortified BGA footprint dimensions and special handling instructions regarding ultrasonic cleaning and thermal exposure limits.

Memory IC Selection Notes

Select this component when a 2 Gbit capacity is required in a compact 64-ball form factor. The GL-T series is appropriate for designs needing simultaneous versatility in I/O voltage levels alongside high-performance page mode access. Consider the 45-nm MIRRORBIT™ technology for improved density and power efficiency compared to older floating gate processes. Ensure the host system supports the asynchronous parallel interface timing parameters, specifically the 110 ns random access and 20 ns page access constraints.

Memory IC Part Context

This device belongs to the S70GL02GT series, part of Infineon's broader GL Parallel NOR flash portfolio. It is functionally based on a dual-stack of S29GL01GT dies. The GL-T family is characterized by its use of MIRRORBIT™ technology, offering high endurance and data retention. It serves as a successor or alternative to previous generation devices like the S29GL series, providing enhanced performance metrics and modern packaging solutions for embedded memory needs.

Memory IC Replacement Considerations

Direct replacements must match the 2 Gbit density, parallel interface, and 64-ball BGA package. Verify if the original design utilized the lowest address sector protection variant; if so, the S70GL02GT11FHV023 may be a compatible substitute depending on the VIO requirements. Cross-reference the die-level specifications with the S29GL01GT datasheet for detailed electrical parity.
