S733025-14.7456-X-30-R

Oscillators Overview

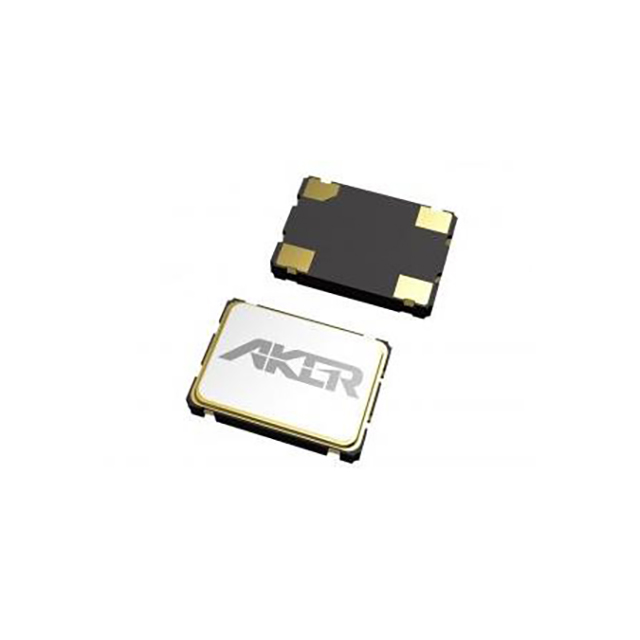

The S733025-14.7456-X-30-R is a surface-mount HCMOS clock oscillator manufactured by Aker Technology Corp. It operates at a nominal frequency of 14.7456 MHz with a standard output configuration. The device supports a supply voltage range from 1.8 V to 3.3 V and features an enable/disable function for power management. It utilizes a 4-pin SMD package with dimensions of 7.0 mm x 5.0 mm x 1.3 mm. The unit is RoHS compliant and lead-free, designed for reliable performance in various electronic applications requiring precise timing signals.

Oscillators Feature Summary

• HCMOS output interface compatible with standard logic families
• Integrated enable and disable control functionality
• Surface mount construction for automated assembly
• RoHS compliant and lead-free manufacturing process

Oscillators Applications

• Embedded system clock generation
• Industrial automation timing circuits
• General electronics signal synchronization

Oscillators Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to ensure correct voltage and output specifications. Confirm that the ordering part number matches the required frequency stability and package type. Cross-reference datasheet revisions to validate electrical characteristics before procurement. Ensure compliance with environmental standards required by the target application.

Oscillators Selection Notes

Select this component when a 14.7456 MHz HCMOS clock source is required in a 7050 surface-mount package. Consider the enable/disable feature if power management during standby modes is necessary. Verify that the operating temperature range and supply voltage compatibility align with the system design requirements. Evaluate alternative packages only if physical space constraints differ from the standard 7.0 mm x 5.0 mm footprint.

Oscillators Part Context

This oscillator belongs to the S7 series of surface-mount clock generators from Aker Technology Corp. The series offers various frequencies and output types tailored for digital systems. The S733025 variant specifically denotes the 7.0 mm x 5.0 mm package size. This model provides a stable reference clock for microprocessors and communication interfaces within compact electronic designs.

Oscillators Replacement Considerations

Direct substitutes include S733025-14.7456-X-R and S733025-14.7456-X-15-R from the same manufacturer. These alternatives share identical pinouts and mechanical dimensions but may differ in supply voltage or output load specifications. Verify functional equivalence before substitution.
