S765FL-120-AH-915

Antennas RF Overview

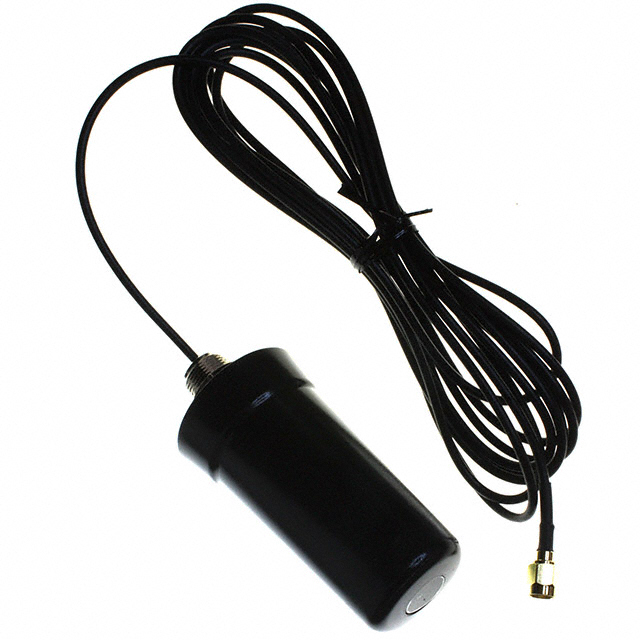

The Nearson S765FL-120-AH-915 is a fixed-frequency RF antenna designed for operation at 915 MHz. It features a whip-style radiator with a straight configuration, suitable for applications requiring omnidirectional coverage. The component utilizes an RP-SMA male connector for interface compatibility with standard RF modules. Designed for panel mounting, it provides a reliable connection point for wireless communication systems operating in the ISM band.

Antennas RF Feature Summary

• Whip-style design with straight radiator geometry
• RP-SMA male connector interface
• Panel mounting configuration

Antennas RF Applications

• ISM band wireless communication systems
• RF module connectivity
• Panel-mounted antenna installations

Antennas RF Procurement Notes

Verify the specific connector gender and frequency range against system requirements before procurement. Confirm that the RP-SMA male interface matches the mating port on the host device. Ensure the panel mount style aligns with the physical enclosure design constraints of the target application.

Antennas RF Selection Notes

Select this model when a fixed 915 MHz solution is required. The straight whip form factor offers a balance between profile height and radiation performance. Consider the panel mount requirement as a primary constraint for installation planning.

Antennas RF Part Context

This part belongs to the Nearson S765 series of RF antennas. The series includes various configurations for different frequencies and connector types. This specific variant targets the 915 MHz market segment with a standardized mechanical footprint.

Antennas RF Replacement Considerations

Cross-reference with other Nearson models in the S765 family for alternative connector options or frequency bands. Verify mechanical dimensions and electrical specifications before substituting with generic equivalents.
