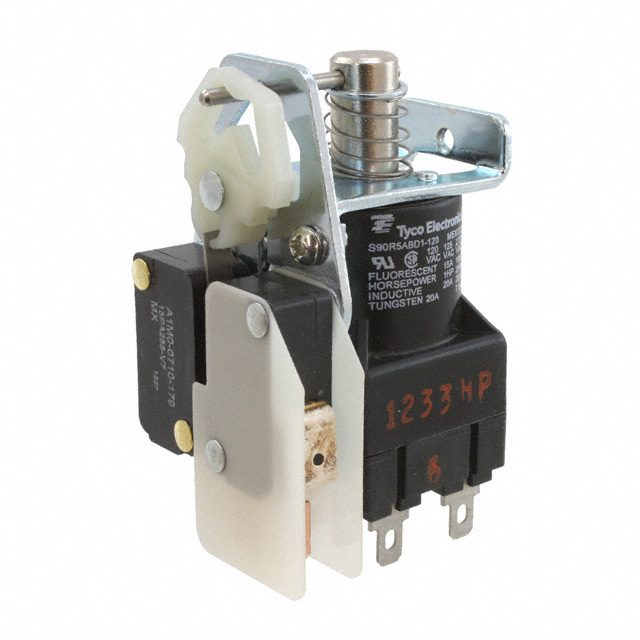

Power Relays, Over 2 Amps S90R5ABD1-120 product image

S90R5ABD1-120

Description：RELAY IMPULSE SPDT 20A 120V
Series：S90R
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Bulk

SKU:21991263bbc9 Category: Power Relays, Over 2 Amps Brand: TE Connectivity Potter & Brumfield Relays

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S90R5ABD1-120 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY IMPULSE SPDT 20A 120V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for S90R5ABD1-120

Description：RELAY IMPULSE SPDT 20A 120V
Series：S90R
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Bulk
Mounting Type：Chassis Mount
Coil Voltage：120VAC
Contact Form：SPDT (1 Form C)
Contact Rating (Current)：20 A
Switching Voltage：277VAC - Max
Load - Max Switching：5540VA
Coil Current：75 mA
Coil Type：Latching, Single Coil
Features：-
Termination Style：Quick Connect - 0.250" (6.3mm)
Seal Rating：-
Coil Insulation：Class B
Must Operate Voltage：102 VAC
Must Release Voltage：-
Operating Temperature：-10°C ~ 60°C
Contact Material：-
Approval Agency：CSA, UR
Relay Type：Impulse
Grade：-
Qualification：-
Operate Time：-
Release Time：-

Power Relays, Over 2 Amps datasheet and documents for S90R5ABD1-120
