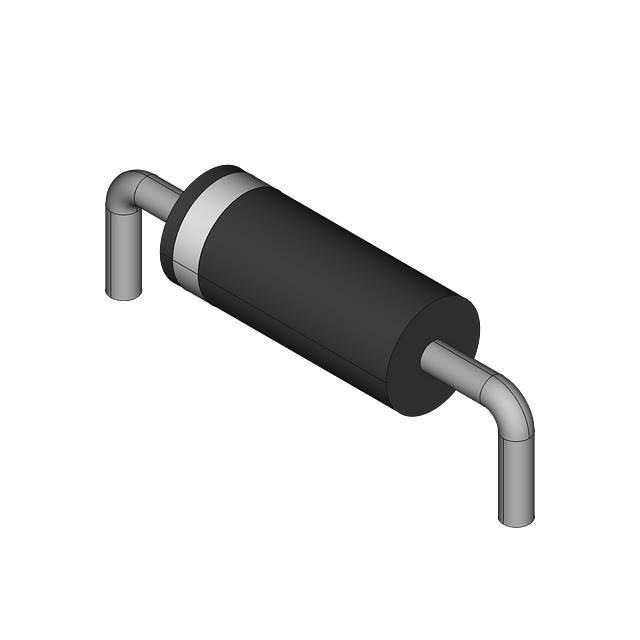

SA22A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Fairchild Semiconductor. Its product description is TVS DIODE 22VWM 35.5VC DO204AC. Review the specifications below when checking this part for your BOM.
Tvs Diodes specifications for SA22A
- Description：TVS DIODE 22VWM 35.5VC DO204AC
- Series：SA
- Mfr：Fairchild Semiconductor
- Package：Bulk
- Type：Zener
- Bidirectional Channels：-
- Voltage - Reverse Standoff (Typ)：22V
- Voltage - Breakdown (Min)：24.4V
- Voltage - Clamping (Max) @ Ipp：35.5V
- Current - Peak Pulse (10/1000µs)：14.4A
- Power - Peak Pulse：500W
- Power Line Protection：No
- Applications：General Purpose
- Capacitance @ Frequency：-
- Operating Temperature：-55°C ~ 175°C (TJ)
- Mounting Type：Through Hole
- Package / Case：DO-204AC, DO-15, Axial
- Supplier Device Package：DO-204AC (DO-15)
- Unidirectional Channels：1
- Grade：-
- Qualification：-
Tvs Diodes datasheet and documents for SA22A
