SA532250F35HDT

Crystals Overview

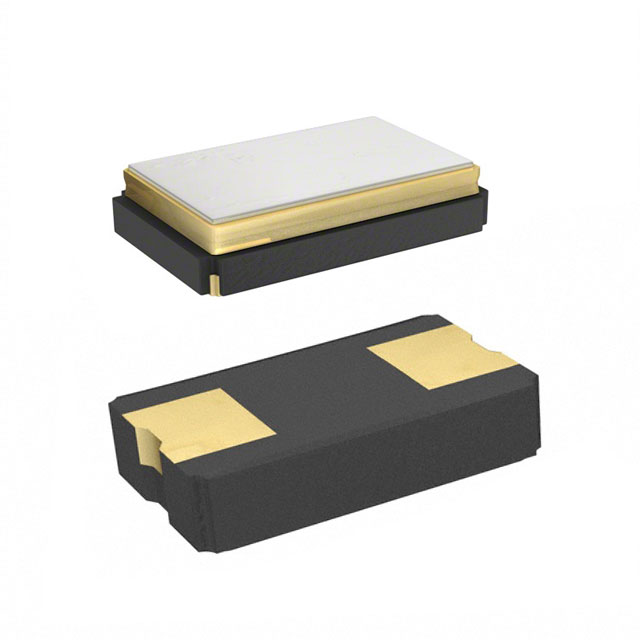

The SA532250F35HDT is a surface-mount MHz crystal manufactured by CTS-Frequency Controls. It operates at a fundamental frequency of 25 MHz with a load capacitance of 18 pF and an equivalent series resistance of 40 Ohms. The component features a frequency tolerance of ±30 ppm and stability of ±50 ppm, housed in a compact 2-SMD, No Lead package measuring 2.00mm x 1.60mm. Designed for base mode operation, it supports a standard operating temperature range of -40°C to +85°C and complies with RoHS3 regulations.

Crystals Feature Summary

• Provides stable clock signals via fundamental resonance mode
• Enables space-constrained designs through small surface-mount footprint
• Supports automated assembly processes with tape-and-reel packaging

Crystals Applications

• Microcontroller clock sources
• Communication interface timing circuits
• General-purpose digital system oscillators

Crystals Procurement Notes

Verify the specific suffix HDT against official CTS documentation to confirm the exact reel quantity and handling specifications. Ensure the ordering part number matches the required frequency tolerance and package dimensions. Cross-reference the manufacturer datasheet for the latest environmental compliance status and recommended soldering profiles to guarantee reliable integration into the target circuit design.

Crystals Selection Notes

Select this component when a 25 MHz fundamental frequency is required within a limited board area. The 18 pF load capacitance must align with the host circuit's external capacitor values to achieve the specified ±30 ppm accuracy. Consider the 40 Ohm ESR for drive level sensitivity and ensure the operating temperature range meets the application's environmental requirements.

Crystals Part Context

This part belongs to the SA532 series of surface-mount crystals from CTS-Frequency Controls. These components are engineered for high reliability in consumer and industrial electronics. The series offers various frequencies and packages, providing designers with flexible options for integrating precise timing references into modern printed circuit boards without compromising space efficiency.

Crystals Replacement Considerations

Direct substitutes include SA532250F35HLR and SA532250F35HAR from CTS-Frequency Controls. Verify that alternative packages match the 2-SMD form factor and electrical parameters before implementation.
