SAF868M275S134

Overview

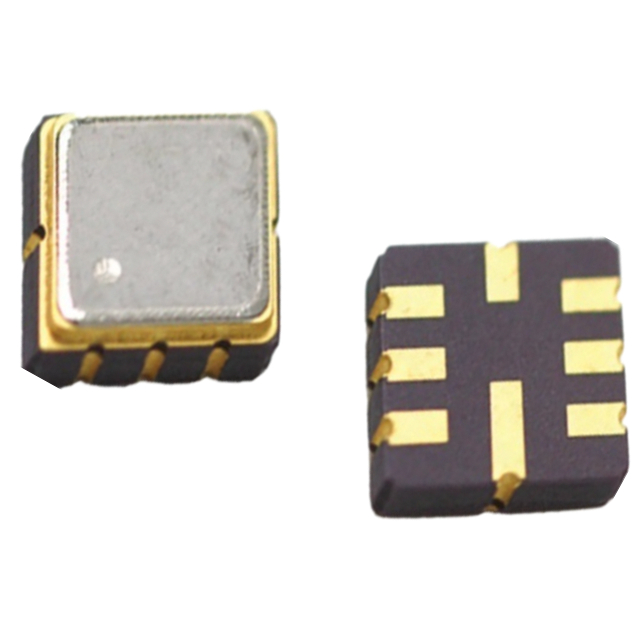

The SAF868M275S134 is a Surface Acoustic Wave (SAW) filter manufactured by NextGen Components. It operates at a center frequency of 868.275 MHz with a bandwidth of 700 kHz. The device features a typical insertion loss of 5.4 dB and is housed in an 8-SMD, no-lead package measuring 5.0 x 5.0 x 1.50 mm.

Feature Summary

• Surface Acoustic Wave technology for RF filtering
• Designed for wireless applications
• Compact SMD form factor

Applications

• Wireless RF systems

Procurement Notes

Verify the manufacturer designation as NextGen Components, Inc., which functions as a distributor and manufacturer of electronic components. Confirm the specific part number SAF868M275S134 matches the required 868.275 MHz frequency and 8-SMD package dimensions. Ensure compatibility with 50-ohm system impedance requirements before procurement.

Selection Notes

Select this component for applications requiring precise filtering at 868.275 MHz. Consider the 5.4 dB insertion loss and 700 kHz bandwidth when designing RF signal paths. The 8-SMD package size must fit within the available PCB real estate constraints.

Part Context

This component belongs to the SAF series of SMD SAW filters from NextGen Components. It is categorized under discriminators and filters, specifically designed for surface acoustic wave applications in electronic circuits.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical specifications against potential alternatives if sourcing changes occur.
