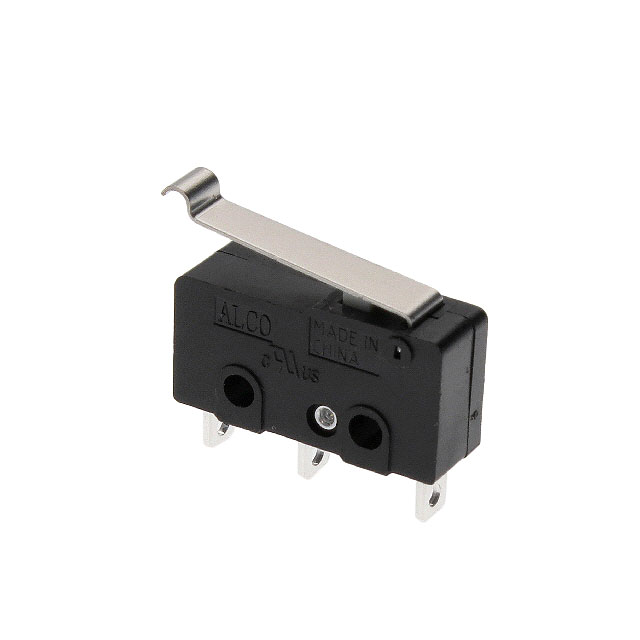

Limit Switches SAJ25YXRHL147SDTSEQ product image

SAJ25YXRHL147SDTSEQ

$1.19

Description：SWITCH SNAP ACTION SPDT 5A 125V
Series：SAJ2
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Bulk

SKU:a8a16033426a Category: Limit Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SAJ25YXRHL147SDTSEQ is listed in the Limit Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH SNAP ACTION SPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for SAJ25YXRHL147SDTSEQ

Description：SWITCH SNAP ACTION SPDT 5A 125V
Series：SAJ2
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：5A (AC), 3A (DC)
Voltage Rating - AC：125 V
Actuator Type：Lever, Simulated Roller
Mounting Type：Chassis Mount
Termination Style：Solder Lug
Ingress Protection：-
Features：-
Operating Force：50gf
Release Force：60gf
Operating Position：0.420" (10.7mm)
Pretravel：0.188" (4.8mm)
Differential Travel：0.031" (0.8mm)
Overtravel：0.047" (1.2mm)
Operating Temperature：-40°C ~ 75°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for SAJ25YXRHL147SDTSEQ
