SAK-TC1762-128F66HL AC

Microcontrollers Overview

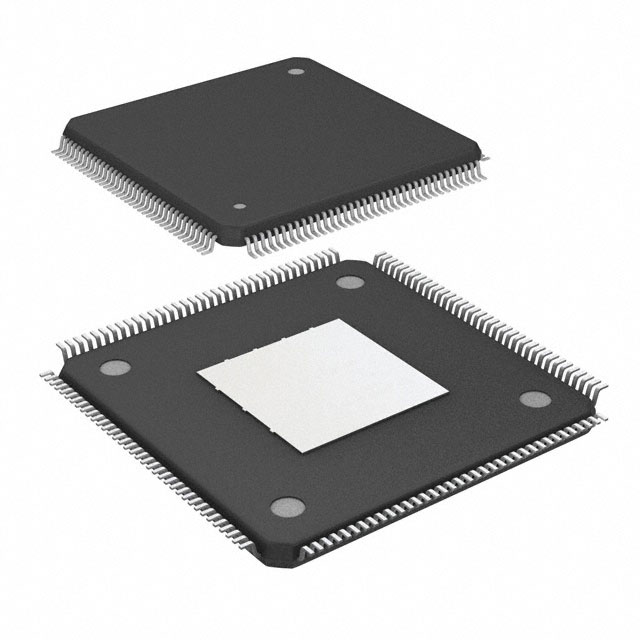

The SAK-TC1762-128F66HL AC is a 32-bit single-chip microcontroller based on the TriCore architecture, operating at 66 MHz within an ambient temperature range of -40°C to +125°C. It features a high-performance super-scalar CPU with integrated DSP capabilities and a single-precision Floating Point Unit (FPU). The device includes 1024 Kbyte Flash memory, 32 Kbyte Local Data Memory (SRAM), and 16 Kbyte Data Flash. Connectivity is provided by two ASC channels, one SSC channel, one MSC interface, one MLI interface, and a MultiCAN module with two nodes. Analog conversion is handled by a 16-channel ADC and a 2-channel FADC. The unit utilizes a PG-LQFP-176-2 package.

Microcontrollers Feature Summary

• High-performance 32-bit super-scalar TriCore v1.3 CPU with integrated DSP and FPU
• Integrated MultiCAN controller supporting two CAN nodes with hardware FIFO buffering
• Versatile peripheral set including ASC, SSC, MSC, and MLI interfaces for serial communication
• On-chip debug support via OCDS Level 1 and 2 with dedicated emulation chip capability

Microcontrollers Applications

• Automotive electronic control units requiring real-time processing
• Industrial motor control applications utilizing GPTA and PWM functionality
• Complex input/output management systems leveraging digital signal filtering
• Inter-processor communication networks using Micro Link Interface (MLI)

Microcontrollers Procurement Notes

Verify the specific ordering code against official Infineon documentation to ensure correct voltage and package specifications. Confirm that the component meets required automotive qualification standards before integration into safety-critical designs. Cross-reference the datasheet revision history for any updates to pin definitions or timing parameters prior to finalizing procurement orders.

Microcontrollers Selection Notes

Select this derivative specifically for applications requiring 66 MHz operation frequency rather than the 80 MHz variant. Ensure system design accommodates the 1.5 V core supply and 3.3 V I/O voltage requirements. Verify that the available 32 analog input lines and 81 digital I/O lines meet the interface count needs of the target application architecture.

Microcontrollers Part Context

This component belongs to the TC176x family of 32-bit microcontrollers designed for demanding automotive and industrial environments. It shares architectural similarities with other TriCore-based devices but offers specific memory configurations and peripheral sets tailored for cost-sensitive yet high-performance embedded control tasks.

Microcontrollers Replacement Considerations

SAK-TC1762-128F80HL AC serves as a higher-frequency alternative within the same package and feature set.
