SAK-TC264DC-40F200W BC

Microcontrollers Overview

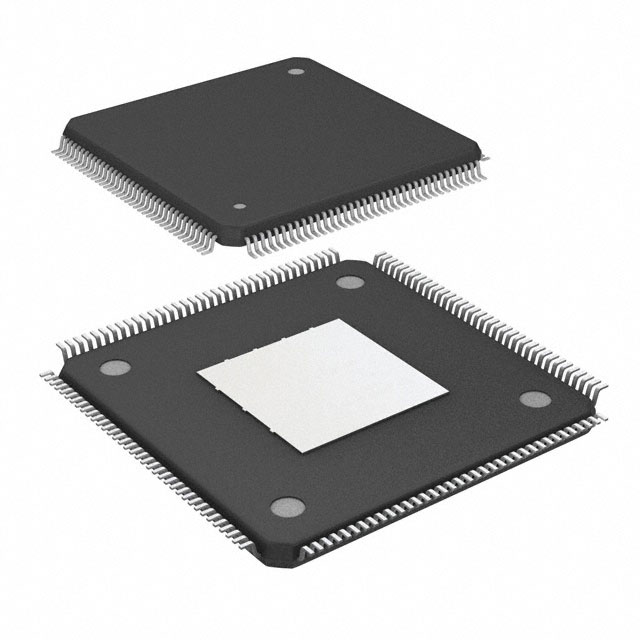

The SAK-TC264DC-40F200W BC is a 32-bit microcontroller from the AURIX TC2xx family, designed for automotive and industrial applications. It features a dual-core TriCore architecture with one lockstep core, operating at frequencies up to 200 MHz. The device integrates up to 2.5 MByte of Flash memory and 240 kByte of SRAM (including cache), both equipped with ECC. It supports ISO 26262 safety standards up to ASIL-D/SIL-3. Key peripherals include five CAN nodes, four SPI interfaces, four LIN interfaces, and seven ADC modules. The unit operates within a temperature range of -40°C to +125°C and utilizes an LQFP-144 package.

Microcontrollers Feature Summary

• Dual TriCore CPU with DSP functionality and hardware acceleration
• Integrated safety mechanisms supporting ASIL-D and SIL-3 standards
• Comprehensive connectivity including Ethernet, FlexRay, and multiple serial interfaces

Microcontrollers Applications

• Automotive powertrain control units
• Advanced Driver Assistance Systems (ADAS)
• Industrial automation controllers

Microcontrollers Procurement Notes

Verify the specific suffix against official Infineon documentation to confirm pinout and electrical characteristics. Confirm RoHS compliance status through current datasheets. Check availability as distribution may vary. Ensure the ordering code matches the required package type and temperature grade before procurement.

Microcontrollers Selection Notes

Select this component for high-performance real-time processing requiring functional safety certification. Compare memory sizes and peripheral counts against other TC2xx variants to ensure adequate resources. Verify voltage requirements and package constraints for the target PCB design. Consider thermal management needs given the operating temperature range.

Microcontrollers Part Context

This part belongs to the AURIX TC2xx family, representing first-generation 32-bit microcontrollers based on the TriCore architecture. The series is engineered for demanding automotive environments, offering a balance of computational power and safety integrity. It serves as a foundational platform for complex electronic control systems in modern vehicles.

Microcontrollers Replacement Considerations

Consult official substitution lists for compatible parts within the TC2xx family. Verify that alternative components maintain identical pin compatibility and safety certifications.
