SB05W05C-TB-E

Overview

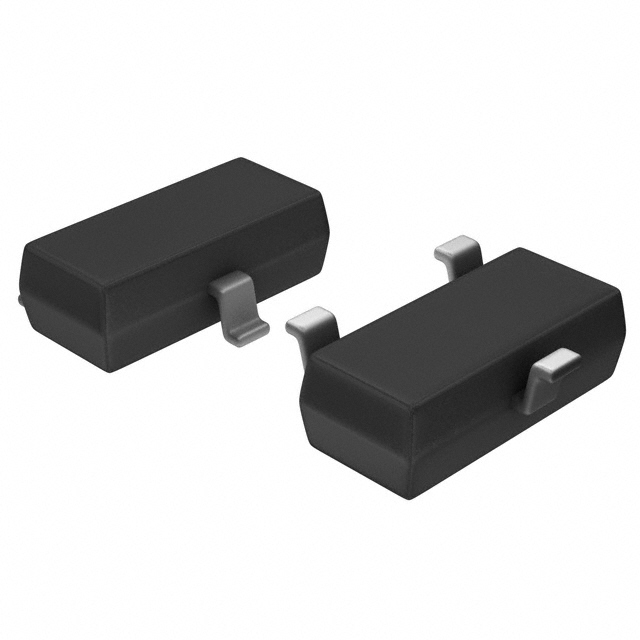

The SB05W05C-TB-E is a Schottky Barrier Diode manufactured by onsemi. It functions as a rectifier with a maximum repetitive peak reverse voltage of 50V and an average forward rectified current rating of 500mA. The device utilizes a surface-mount TB-E package, designed for efficient power conversion applications requiring low forward voltage drop and high switching speed.

Feature Summary

• Schottky barrier construction for low forward voltage drop
• High switching efficiency suitable for high-frequency applications
• Surface-mount packaging for automated assembly

Applications

• DC-DC converter rectification
• Power supply freewheeling diodes
• Reverse polarity protection circuits

Procurement Notes

Verify the exact suffix against official onsemi documentation to confirm package type and tape-and-reel specifications. Ensure the component meets RoHS compliance requirements for your specific manufacturing process. Cross-reference the datasheet revision date to guarantee parameter accuracy during procurement.

Selection Notes

Select this component when a 50V reverse voltage rating and 500mA current capacity are required in a compact surface-mount form factor. Consider the TB-E package dimensions for PCB layout constraints. Evaluate thermal management needs based on the expected forward current and ambient operating conditions.

Part Context

This part belongs to onsemi's Schottky Barrier Diode family, which provides solutions for general-purpose rectification and power management. These devices are engineered to replace standard PN junction diodes in applications where reduced power loss and faster recovery times are critical for system performance.

Replacement Considerations

Publicly confirmed substitute part numbers for SB05W05C-TB-E were not identified in the provided source material. Verify compatibility with alternative Schottky diodes such as those from NXP or Vishay only after confirming electrical and mechanical parameter alignment.
