SB1045F_T0_00001

Single Diodes Overview

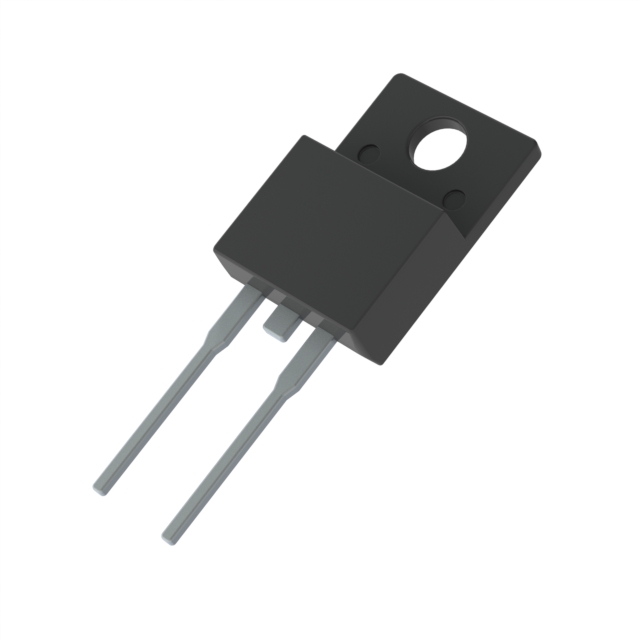

The SB1045F_T0_00001 is a Schottky barrier rectifier manufactured by Panjit International Inc. It features a maximum repetitive peak reverse voltage of 45 V and an average forward rectified current rating of 10 A. The device utilizes an ITO-220AC package, providing full insulation for direct mounting to heat sinks. Designed for high efficiency, it exhibits low forward voltage drop characteristics typical of Schottky technology, minimizing power losses in rectification applications.

Single Diodes Feature Summary

• Schottky barrier construction for low forward voltage drop
• ITO-220AC insulated package enabling direct heatsink mounting
• High efficiency operation with reduced power losses

Single Diodes Applications

• General purpose power rectification
• DC-DC converter output stages
• Free-wheeling diodes in inductive load circuits

Single Diodes Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct packaging and electrical specifications. Confirm that the ITO-220AC insulated tab configuration matches the thermal management requirements of the target design. Cross-reference the part number with authorized distributors to validate authenticity and current availability status before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a 45 V reverse voltage rating and 10 A continuous current capacity are required. The insulated TO-220 variant is suitable for designs needing galvanic isolation between the cathode and the mounting surface. Ensure the application operates within the specified junction temperature range and accounts for derating factors at elevated ambient temperatures.

Single Diodes Part Context

This component belongs to Panjit's single Schottky diode lineup, specifically designed for medium-current rectification tasks. The SB1045 series typically offers a balance of switching speed and current handling capability. The F_T0 suffix denotes the specific ITO-220AC insulated package configuration, distinguishing it from standard non-insulated variants within the same electrical family.

Single Diodes Replacement Considerations

Direct substitutes must match the 45 V reverse voltage, 10 A forward current, and ITO-220AC insulated package form factor. Verify equivalent forward voltage drop and thermal resistance characteristics to maintain circuit performance. Consult manufacturer cross-reference lists for confirmed compatible replacements.
