SB10H150CT-1E3/45

Description：DIODE ARR SCHOTT 150V 5A TO262AA
Series：-

SKU:db57b1f68e57 Category: Diode Arrays Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARR SCHOTT 150V 5A TO262AA
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：150 V
Current - Average Rectified (Io) (per Diode)：5A
Voltage - Forward (Vf) (Max) @ If：880 mV @ 5 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：5 µA @ 150 V
Operating Temperature - Junction：-65°C ~ 175°C
Mounting Type：Through Hole

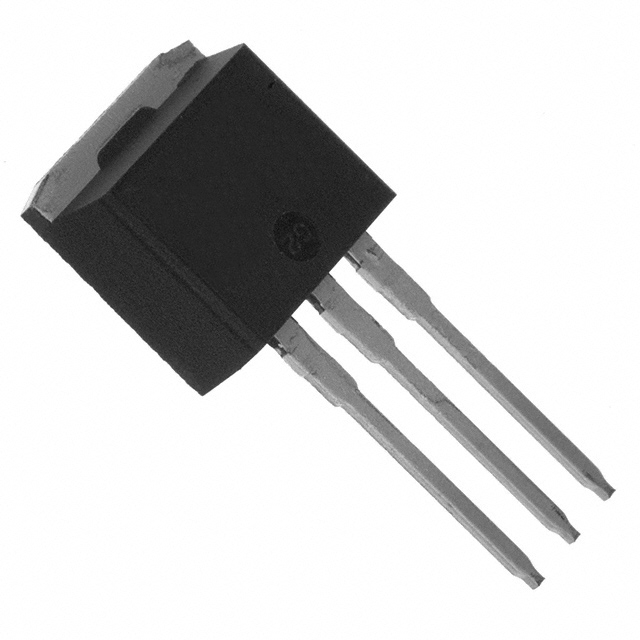

Package / Case：TO-262-3 Long Leads, I2PAK, TO-262AA
Supplier Device Package：TO-262AA
Grade：-
Qualification：-

Download product information

SB10H150CT-1E3/45

Overview

The SB10H150CT-1E3/45 is a dual common-cathode high-voltage Schottky rectifier manufactured by Vishay General Semiconductor. It features a maximum repetitive peak reverse voltage of 150 V and an average forward rectified current of 2 x 5 A per diode. The device exhibits a low forward voltage drop of 0.72 V at 5.0 A and a typical leakage current of 5.0 μA at working peak reverse voltage. Designed for TO-262AA (TO-262) surface-mount packaging, it supports a junction temperature range of -65 to +175 °C and includes guardring technology for overvoltage protection.

Feature Summary

Guardring structure provides enhanced overvoltage protection capabilities
Low forward voltage drop ensures high efficiency and reduced power loss
High-frequency operation suitability with minimal switching losses
Compliant with RoHS 2002/95/EC and WEEE 2002/96/EC directives

Applications

High frequency inverters
Freewheeling applications
Polarity protection circuits

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm package type and compliance status. Confirm that the E3 suffix aligns with required consumer grade specifications and whisker test standards. Ensure the TO-262AA package variant matches the intended PCB footprint requirements before finalizing procurement orders.

Selection Notes

Select this component for designs requiring high-voltage Schottky rectification in surface-mount configurations. Evaluate thermal management strategies based on the specified thermal resistance characteristics. Consider the 150 V rating and 10 A total current capacity when sizing components for power conversion stages. Validate junction temperature limits under expected operating conditions.

Part Context

This part belongs to the SB10H150CT series of dual common-cathode Schottky rectifiers from Vishay. It shares electrical characteristics with the MBR10H150CT and MBRF10H150CT models but utilizes a distinct TO-262AA surface-mount package. The series is engineered for applications demanding low leakage and high reliability in compact form factors.
