SB450FME12 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is STEALTH BLADE, 450 - 470 MHZ, 12. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SB450FME12
- Description：STEALTH BLADE, 450 - 470 MHZ, 12
- Series：-
- Mfr：Pulse Electronics
- Package：Bag
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：460MHz
- Frequency Range：450MHz ~ 470MHz
- Antenna Type：Blade
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：2.14dBi
- Features：-
- Termination：FME
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive, Glass
- Height (Max)：10.000" (254.00mm)
- Applications：-
- Power - Max：3 W
Antennas RF datasheet and documents for SB450FME12
Antennas RF Overview

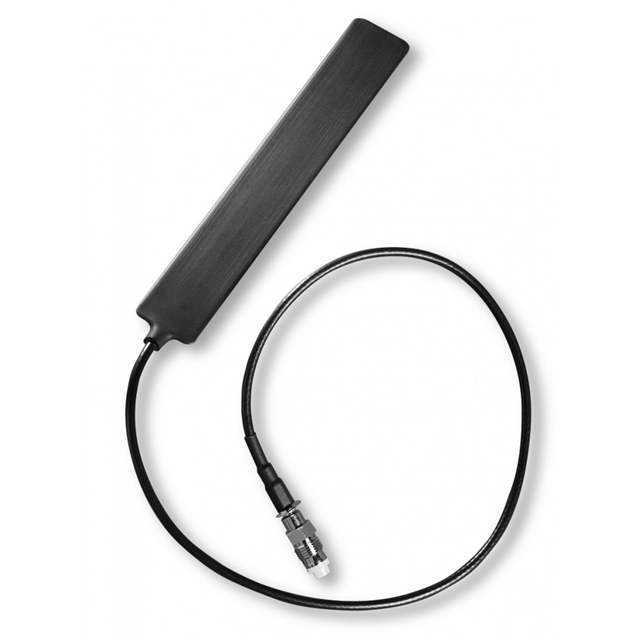

The SB450FME12 is a stealth blade antenna manufactured by Pulse Electronics, designed for the UHF frequency band. It operates within a specific range of 450 MHz to 470 MHz. The component features linear polarization and provides a gain of 2.14 dBi. It utilizes an FME connector interface and is constructed with RG316 cable. The maximum height of the unit is 10.000 inches (254.00 mm).
Antennas RF Feature Summary
- Stealth blade design for low-profile installation
- Linear polarization for consistent signal transmission
- Integrated FME connector for secure attachment
Antennas RF Applications
- UHF radio communication systems
- Mobile vehicle communications
- Portable two-way radio setups
Antennas RF Procurement Notes
Verify current availability status as this product may be discontinued or subject to limited stock. Confirm that the FME connector type matches existing equipment interfaces. Ensure the 450-470 MHz frequency range aligns with operational requirements. Check for alternative part numbers if original supply is unavailable.
Antennas RF Selection Notes
Select this model when a low-profile UHF antenna is required for mobile or portable applications. The 2.14 dBi gain offers standard performance for short-range communications. The FME connector compatibility is critical for integration with compatible transceivers. Consider the physical dimensions for mounting constraints in confined spaces.
Antennas RF Part Context
This component belongs to the Stealth Blade antenna series from Pulse Electronics. These antennas are engineered for discreet operation in professional communication environments. The series typically includes various models tailored to different frequency bands and connector types, maintaining consistent structural profiles across the lineup.
Antennas RF Replacement Considerations
No direct substitute part numbers are publicly confirmed. If this item is discontinued, consult manufacturer documentation for equivalent models within the same Stealth Blade series that match the required frequency and connector specifications.
