SBF1G84250S077

Overview

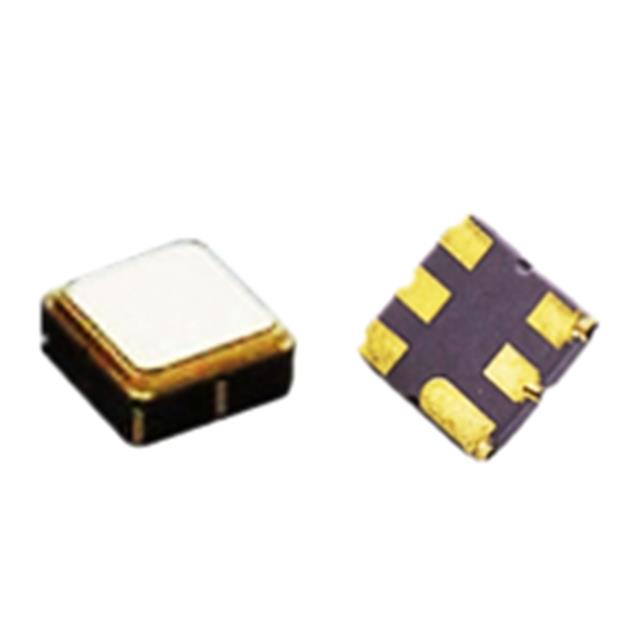

The SBF1G84250S077 is a Surface Acoustic Wave (SAW) filter manufactured by NextGen Components. It operates at a center frequency of 1.8425 GHz with an insertion loss of 1.8 dB. The component features a six-pin configuration and utilizes a 3838 package type, measuring 3.8 mm in length, 3.8 mm in width, and 1.50 mm in height. Designed as an SMD device, it offers low amplitude ripple and sharp rejection characteristics for both out-of-band signals.

Feature Summary

• Low-loss SAW technology
• Low amplitude ripple
• Sharp out-of-band rejection

Applications

• RF signal filtering in communication systems
• Wireless infrastructure components
• Mobile device RF front-ends

Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and thermal specifications. Ensure the receiving facility handles ESD-sensitive components appropriately. Cross-reference the 3838 package dimensions with PCB footprint requirements before integration. Confirm that the 1.8425 GHz center frequency aligns with the target system design parameters.

Selection Notes

Select this component when a compact SMD SAW filter is required for the 1.8425 GHz band. Consider the 1.8 dB insertion loss and 6-pin form factor for space-constrained designs. Evaluate the sharp out-of-band rejection capabilities against adjacent channel interference requirements. Compare physical dimensions against available board real estate.

Part Context

This part belongs to NextGen Components' SAW filter portfolio, which includes various crystal and ceramic filters. The product line focuses on surface mount devices for high-frequency applications. The SBF series specifically targets RF filtering needs in modern electronic equipment requiring precise frequency selection.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
