SBF315M00S3025

Overview

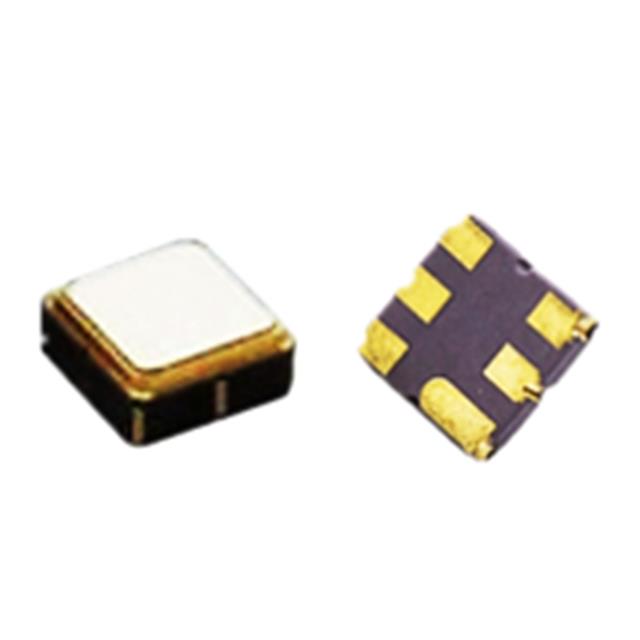

The SBF315M00S3025 is a Surface Acoustic Wave (SAW) filter manufactured by NextGen Components, designed for wireless RF applications. It operates at a center frequency of 315 MHz with a bandwidth of 3 MHz. The component features an insertion loss of 1.8 dB and utilizes a 6-pad SMD package in a 3838 type footprint measuring 3.8mm x 3.8mm x 1.50mm. Key electrical characteristics include low-loss performance and low amplitude ripple, ensuring signal integrity.

Feature Summary

• Low-loss SAW component design
• Low amplitude ripple performance
• Sharp rejection in both out-bands

Applications

• Wireless RF systems
• 315 MHz frequency filtering
• Surface Acoustic Wave applications

Procurement Notes

Verify the exact package dimensions and pin configuration against the official datasheet before integration. Confirm that the 3838 footprint matches your PCB layout requirements. Ensure compatibility with the specified 315 MHz center frequency for your specific RF application needs.

Selection Notes

Select this component when a compact 6-pin SMD SAW filter is required for 315 MHz operations. Consider the 1.8 dB insertion loss and 3 MHz bandwidth specifications to ensure they meet system sensitivity and channel spacing requirements. Verify thermal and mechanical constraints associated with the small 3838 package size.

Part Context

This part belongs to NextGen Components' SAW Filter product line, which also includes resonators and ceramic filters. It is categorized under surface acoustic wave devices used for frequency selection in radio frequency circuits. The manufacturer specializes in various passive electronic components including crystals and oscillators.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference options based on specific electrical and mechanical requirements.
