SBF947M5000S613

Overview

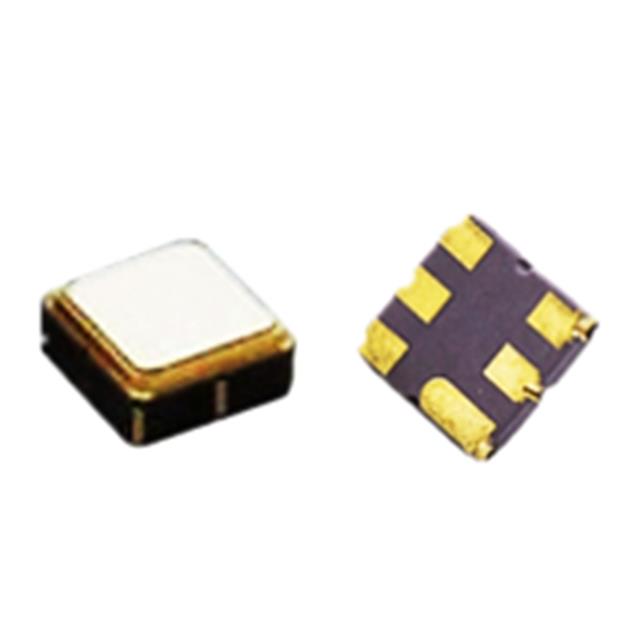

The SBF947M5000S613 is a Surface Acoustic Wave (SAW) filter manufactured by NextGen Components. It operates at a center frequency of 947.5 MHz with an insertion loss of 1.4 dB. The component utilizes a 6-pad configuration in a 3838 type package, measuring 3.8 mm in length, 3.8 mm in width, and 1.50 mm in height. Designed for low-loss performance, it features low amplitude ripple and provides sharp rejection in both out-of-band regions.

Feature Summary

• Low-loss SAW component design
• Low amplitude ripple characteristics
• Sharp rejection in both out-of-band regions

Applications

• RF signal filtering in communication systems
• Wireless device front-end modules
• Frequency selection circuits

Procurement Notes

Verify the specific datasheet version from NextGen Components to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with the target PCB footprint and reflow soldering profiles. Cross-reference the part number with official manufacturer documentation to validate availability and specifications before procurement.

Selection Notes

Select this component when a 947.5 MHz center frequency is required with minimal insertion loss. The 3838 surface-mount package suits applications needing compact RF filtering solutions. Consider the 6-pad configuration for grounding and stability requirements in high-frequency designs.

Part Context

This SAW filter belongs to NextGen Components' line of radio frequency passive devices. It complements their portfolio of quartz crystals, ceramic filters, and resonators. The series targets applications requiring precise frequency control and signal integrity in modern electronic equipment.

Replacement Considerations

Consult NextGen Components for direct substitutes. Verify that any alternative maintains the 947.5 MHz center frequency, similar insertion loss, and compatible 3838 package dimensions to ensure seamless integration.
