SBL-13OZ

Headers, Receptacles, Female Sockets Overview

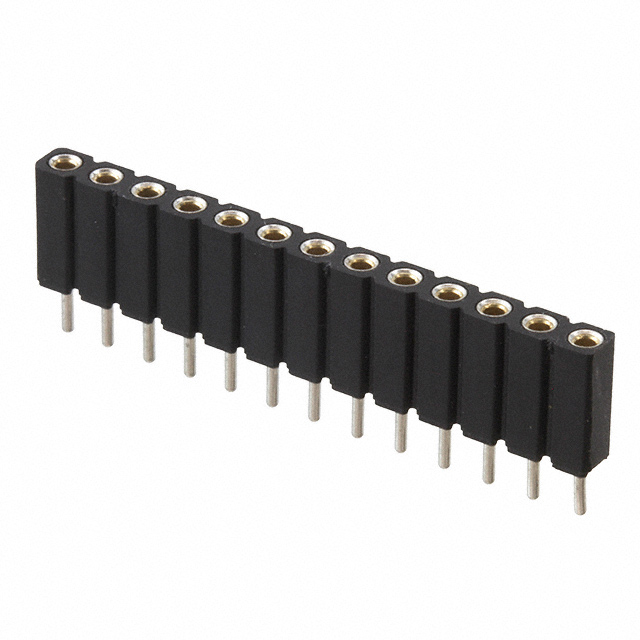

The SBL-13OZ is a rectangular connector receptacle manufactured by On Shore Technology Inc. It features a 13-position configuration designed for through-hole mounting on printed circuit boards. The connector utilizes a 0.100-inch (2.54mm) pitch to ensure standard spacing compatibility with various electronic assemblies. The contact surfaces are finished with gold plating to provide reliable electrical conductivity and corrosion resistance over time. This component serves as a female socket header, facilitating secure mating with corresponding male pins in electronic systems.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated contacts ensure durable electrical performance
• Through-hole mounting provides mechanical stability
• Standard 0.100 inch pitch ensures broad compatibility

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic circuit board interconnections
• Industrial control system module interfaces
• Consumer electronics assembly headers

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm exact pin count and termination style. Ensure the selected variant matches the required PCB hole dimensions and current rating specifications for the intended application environment. Cross-reference part numbers with authorized distributor catalogs to avoid counterfeit components.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 13-position female header is required for rigid PCB integration. Consider the through-hole technology requirements and available panel space for the 0.100-inch pitch layout. Evaluate environmental conditions to determine if the gold finish offers sufficient protection against oxidation compared to tin alternatives.

Headers, Receptacles, Female Sockets Part Context

On Shore Technology Inc. specializes in manufacturing interconnect solutions for diverse industrial applications. The SBL series represents their line of rectangular connectors designed for robust performance. This specific model integrates into broader connector families offering various position counts and termination methods for flexible system design.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official cross-reference lists from On Shore Technology or authorized distributors to identify compatible substitutes. Verify that alternative parts match the 13-position count, 2.54mm pitch, and through-hole termination style before implementation.
