SBPF-0125-0250-05-N

Overview

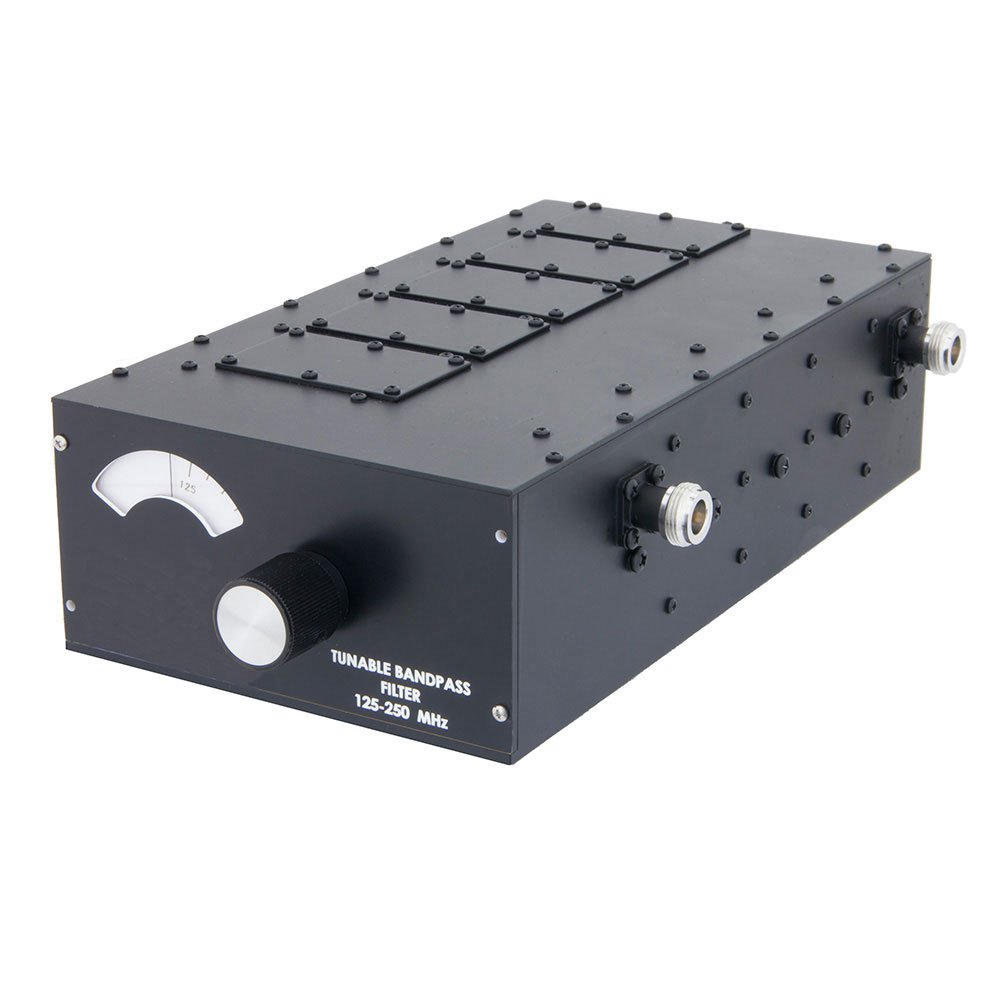

The SBPF-0125-0250-05-N is a tunable bandpass filter manufactured by Fairview Microwave. It features N female connectors and operates within a frequency range of 125 MHz to 250 MHz. The component provides a bandwidth of 5 percent. This RF filter is designed for applications requiring adjustable frequency selection within the specified low-frequency microwave spectrum.

Feature Summary

• Tunable bandpass filtering capability
• N female connector interface
• Adjustable frequency selection

Applications

• RF signal processing
• Test and measurement equipment
• Communication systems

Procurement Notes

Verify the specific datasheet for detailed electrical performance curves and mechanical dimensions. Confirm that the N female connector type matches your system requirements. Ensure the tunable frequency range covers your operational needs between 125 MHz and 250 MHz. Check for any environmental ratings if used in harsh conditions.

Selection Notes

Select this component when a tunable solution is required rather than a fixed filter. Consider the N connector size for board space and cable compatibility. Evaluate the 5 percent bandwidth against your signal isolation needs. Verify that the tuning mechanism allows for precise frequency adjustment during operation.

Part Context

This part belongs to Fairview Microwave's lineup of RF filters and components. It serves as an alternative to fixed-bandwidth filters where frequency agility is necessary. The N connector standard ensures compatibility with common RF test and instrumentation accessories.

FAQ

What is the operating frequency range?

The operating frequency range is from 125 MHz to 250 MHz.

What type of connectors does it use?

It uses N female connectors on both input and output ports.
