SBPF-0750-1500-05-N

Overview

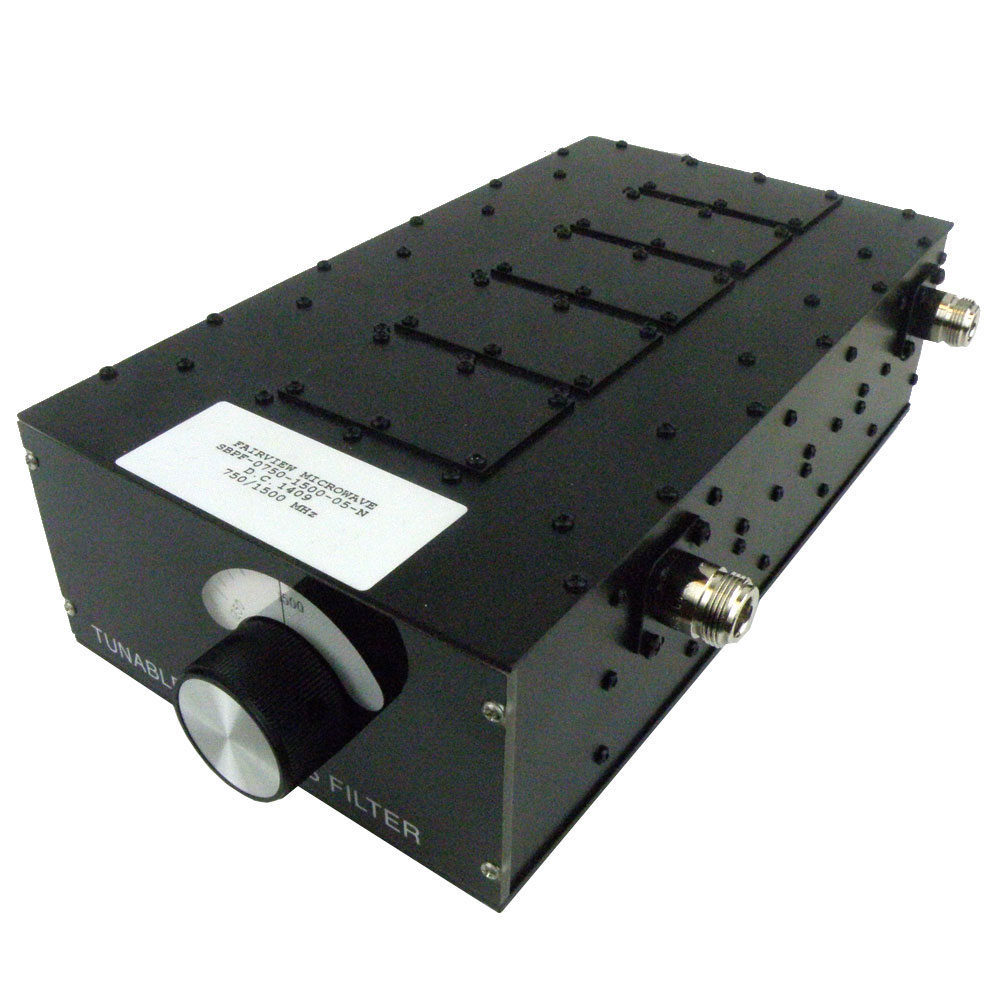

The SBPF-0750-1500-05-N is a tunable bandpass filter manufactured by Fairview Microwave. It operates within a frequency range of 750 MHz to 1.5 GHz and features a tunable bandwidth of 5%. The component is equipped with N female connectors for interfacing. This filter module is designed for applications requiring precise frequency selection and signal filtering within the specified microwave spectrum.

Feature Summary

• Tunable bandpass filtering capability
• N female connector interface
• Frequency range from 750 MHz to 1.5 GHz

Applications

• Wireless communication systems
• Test and measurement equipment
• Signal processing applications

Procurement Notes

Verify the specific part number SBPF-0750-1500-05-N against official Fairview Microwave documentation to ensure accuracy. Confirm that the tunable bandwidth specification of 5% meets your system requirements. Check for any available datasheets or technical drawings for detailed electrical performance characteristics before procurement.

Selection Notes

Select this component when a tunable bandpass filter is required within the 750 MHz to 1.5 GHz range. Ensure compatibility with N female connectors in your design. Consider the 5% tunable bandwidth for flexibility in frequency selection. Verify power handling and insertion loss specifications if critical for your application.

Part Context

Fairview Microwave offers a range of RF filters and components for various frequency bands. The SBPF series includes tunable bandpass filters designed for precision applications. This model specifically targets the UHF and lower microwave frequencies, providing versatility in signal conditioning tasks.

FAQ

What is the tunable bandwidth of the SBPF-0750-1500-05-N?

The tunable bandwidth is 5%.

What type of connectors does this filter use?

It uses N female connectors.
