SBPF-1500-3000-05-N

Overview

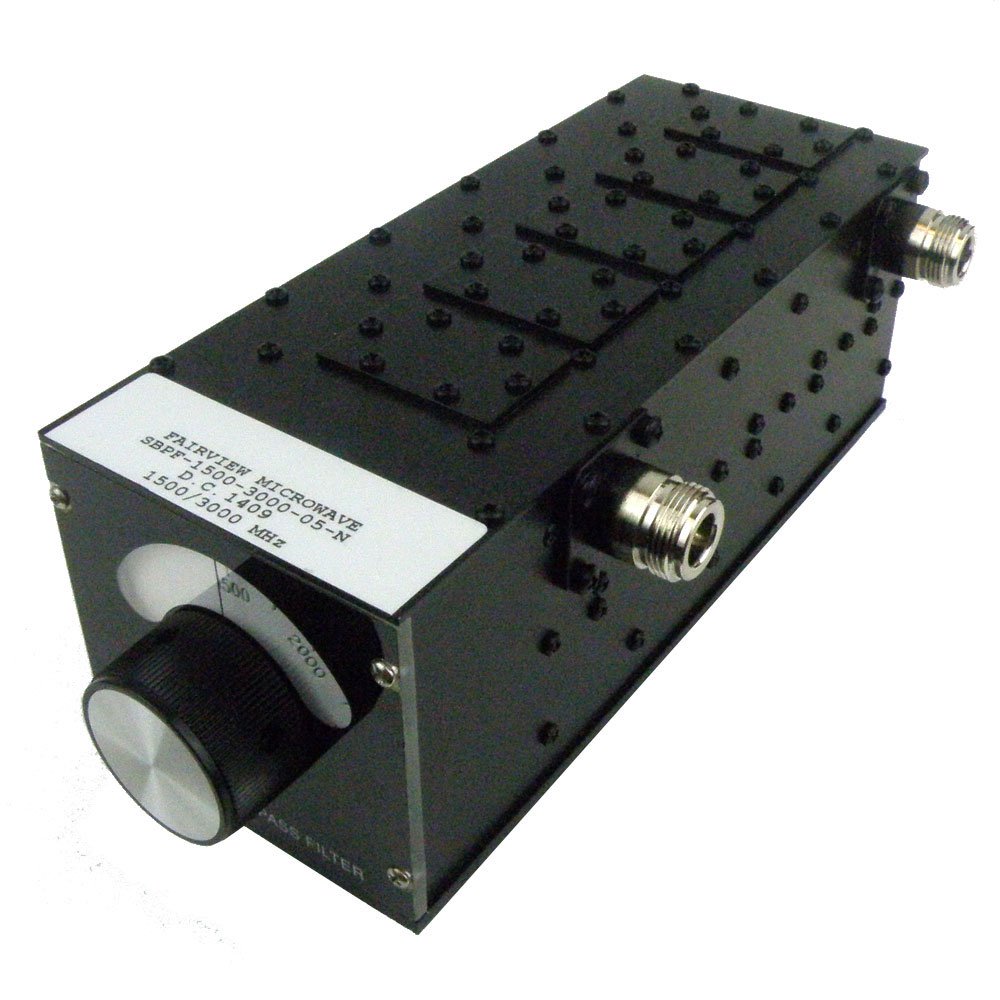

The SBPF-1500-3000-05-N is a tunable band pass filter manufactured by Fairview Microwave. It operates within a frequency range of 1.5 GHz to 3 GHz, featuring a center frequency of 2 GHz and a bandwidth of 500 MHz. The device incorporates N female connectors for interface compatibility. It supports an input power rating of 50 W and maintains an insertion loss of 1 dB.

Feature Summary

• Tunable band pass filtering capability
• N female connector interfaces
• High power handling capacity

Applications

• RF signal processing systems
• Communication equipment testing
• Broadband signal filtering applications

Procurement Notes

Verify the specific datasheet for the SBPF-1500-3000-05-N to confirm current manufacturing status and detailed electrical specifications. Ensure that the required tuning range and power ratings align with system design constraints before procurement. Cross-reference official Fairview Microwave documentation for any updates regarding component availability or revised performance metrics.

Selection Notes

Select this component when a tunable band pass filter is required for frequencies between 1.5 GHz and 3 GHz. The 50 W power rating makes it suitable for high-power applications. Verify that N female connectors match the existing system infrastructure. Confirm that the 500 MHz bandwidth and 1 dB insertion loss meet the specific signal integrity requirements of the application.

Part Context

This part belongs to the Fairview Microwave RF filter portfolio, specifically designed for tunable band pass applications. It utilizes robust N-type connectors to ensure reliable connections in demanding RF environments. The component is engineered to provide precise frequency selection with minimal signal degradation across its operational bandwidth.
