SBR15300D1-13

Single Diodes Overview

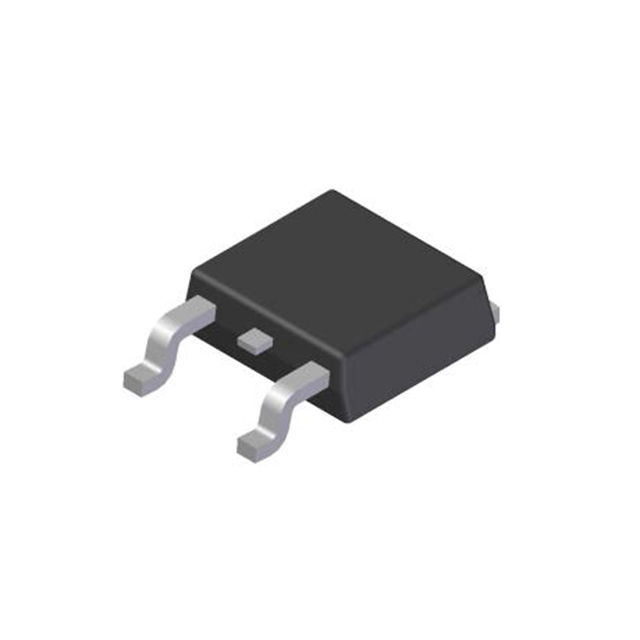

The SBR15300D1-13 is a Super Barrier Rectifier diode manufactured by Diodes Incorporated, housed in a TO252 (DPAK) surface-mount package. It features a peak repetitive reverse voltage of 300 V and an average rectified output current of 15 A. The maximum forward voltage drop is 1.01 V at 15 A and +25°C, with a non-repetitive peak forward surge current rating of 110 A. Reverse leakage current is limited to 10 µA at 300 V and +25°C. The device operates within a junction temperature range of -55°C to +175°C.

Single Diodes Feature Summary

• Patented Super Barrier Rectifier technology providing low forward voltage drop
• Excellent high temperature stability across the operating range
• Lead-free finish compliant with RoHS directives
• Halogen and antimony-free green device construction

Single Diodes Applications

• Polarity protection diode circuits
• Free-wheeling or re-circulating diode applications
• Boost converter diode stages
• Blocking diode implementations

Single Diodes Procurement Notes

Verify the specific ordering suffix '-13' corresponds to the 2,500 pieces per reel tape-and-reel packaging configuration. Confirm compliance requirements such as RoHS 3 and halogen-free status against project specifications. Ensure thermal management design accounts for the specified junction-to-case thermal resistance when calculating power dissipation limits under load conditions.

Single Diodes Selection Notes

Select this component for designs requiring a 300 V blocking capability with a 15 A continuous current rating in a compact DPAK footprint. Evaluate the 1.01 V forward voltage drop against efficiency targets compared to standard silicon rectifiers. Consider the 110 A surge current capacity for transient protection scenarios and verify that the -55°C to +175°C operating range meets environmental constraints.

Single Diodes Part Context

This part belongs to the SBR series of Super Barrier Rectifiers from Diodes Incorporated, combining Schottkin-like speed with standard silicon ruggedness. The SBR15300D1-13 specifically utilizes the TO252 case style for surface mount assembly. It is designed for commercial general-purpose applications where low conduction losses and high-temperature reliability are required.

Single Diodes Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference electrical parameters including voltage, current, and package dimensions before implementation.
