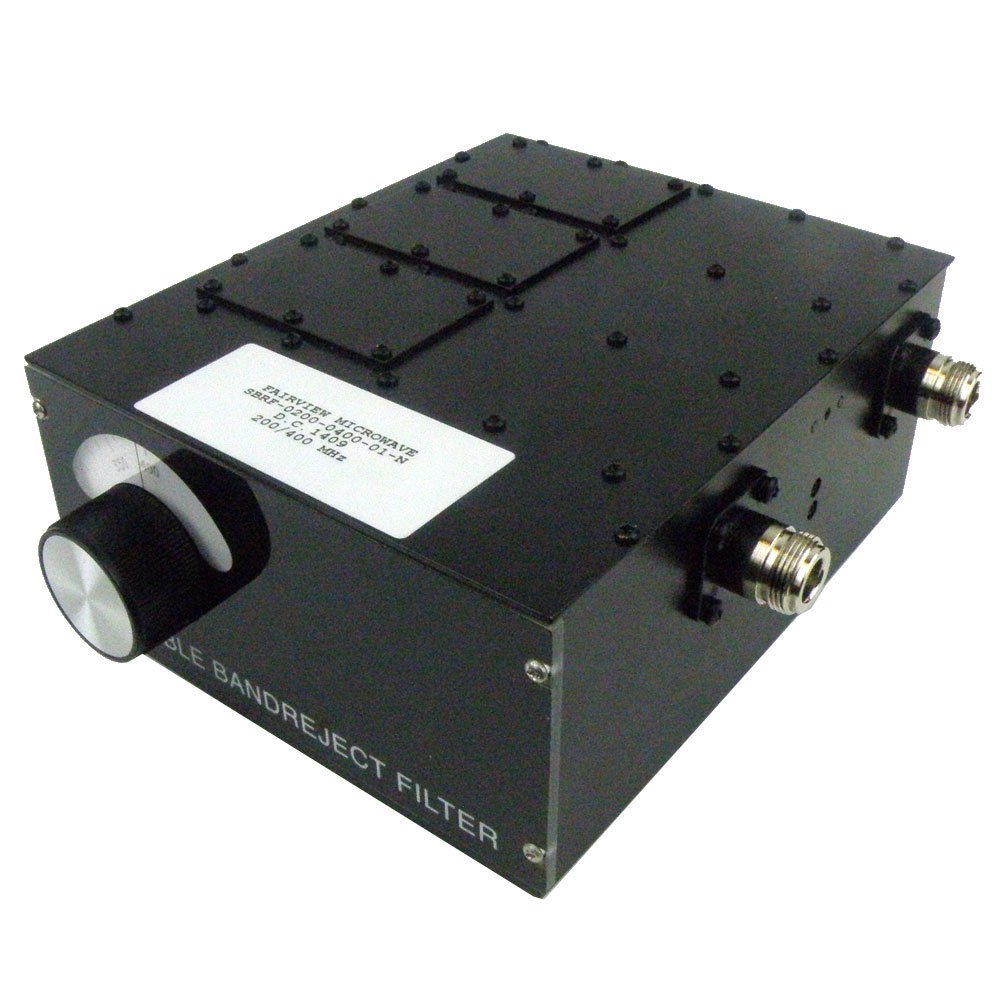

SBRF-0200-0400-01-N

$2,215.95

Description：TUNABLE FILTER TYPE N JACK 200MH
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:f861353c5439 Category: RF Filters Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TUNABLE FILTER TYPE N JACK 200MH
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：300MHz Center
Bandwidth：200MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：-
Mounting Type：Chassis Mount
Package / Case：Module
Size / Dimension：6.500" L x 5.339" W (165.10mm x 135.60mm)
Height (Max)：3.142" (79.81mm)

Download product information

SBRF-0200-0400-01-N

Overview

The SBRF-0200-0400-01-N is a tunable band reject filter manufactured by Fairview Microwave. It operates within a frequency range of 200 MHz to 400 MHz and features N female connectors. The device supports an input power rating of 50 W and offers a bandwidth adjustment capability between 3 MHz and 7 MHz.

Feature Summary

Provides tunable band rejection capabilities for signal conditioning applications
Equipped with N female connectors for standard RF interfacing
Supports high input power handling up to 50 W

Applications

RF signal filtering in communication systems
Interference suppression in test and measurement equipment
Signal conditioning in radar applications

Procurement Notes

Verify the specific datasheet version for the SBRF-0200-0400-01-N to confirm current technical specifications and compliance status. Ensure compatibility with system requirements regarding connector type and power handling before integration. Consult official manufacturer documentation for detailed mechanical drawings and environmental operating limits.

Selection Notes

Select this component when a tunable band reject filter is required within the 200 MHz to 400 MHz range. Consider the 50 W power rating and N female connector interface for system compatibility. Evaluate the adjustable bandwidth range of 3 MHz to 7 MHz against specific interference rejection needs.

Part Context

This part belongs to the SBRF series of tunable band reject filters from Fairview Microwave, designed for precise RF signal management. Similar models in the series, such as the SBRF-0100-0200-01-N, cover different frequency bands while maintaining comparable connector and performance characteristics.
