SBRF-0500-1000-01-N

Overview

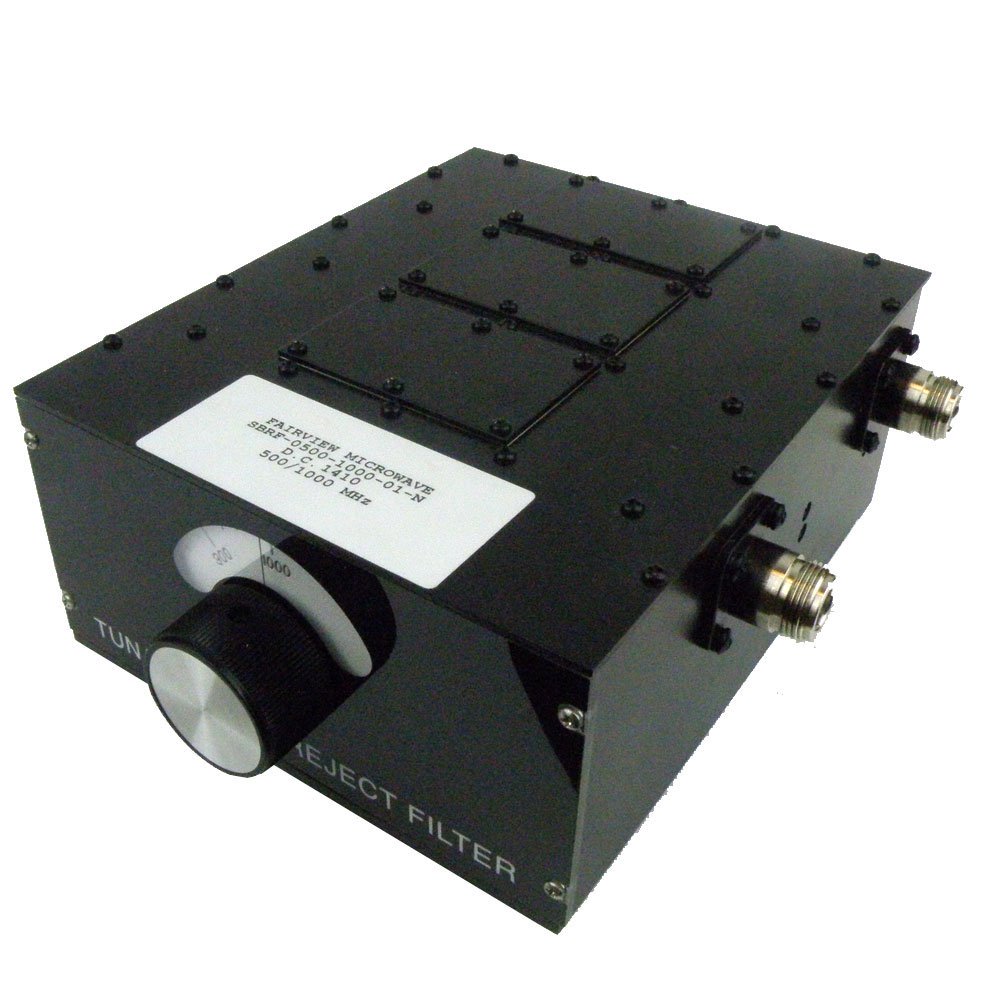

The SBRF-0500-1000-01-N is a tunable band reject filter manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 1,000 MHz and features N female connectors. The device provides signal conditioning with a specified bandwidth of 1%. This component is categorized under signal conditioning products and filters, designed for specific RF applications requiring precise frequency rejection capabilities.

Feature Summary

• Tunable band reject functionality for targeted frequency suppression
• Equipped with N female connectors for standard interface compatibility
• Operates across the 500 MHz to 1,000 MHz frequency spectrum

Applications

• RF signal conditioning systems
• Frequency selective filtering applications
• Test and measurement equipment setups

Procurement Notes

Verify availability through authorized distributors as stock status may vary. Confirm connector type and frequency specifications match system requirements before ordering. Check datasheet for detailed electrical performance characteristics and mechanical dimensions to ensure proper integration into existing RF architectures.

Selection Notes

Select this model when tunable rejection within the 500 MHz to 1 GHz range is required. Ensure N female connector compatibility with downstream components. Consider the 1% bandwidth specification for application-specific selectivity needs. Verify environmental operating conditions against datasheet limits.

Part Context

This part belongs to Fairview Microwave's signal conditioning portfolio, specifically within their band reject filter series. It shares design principles with other tunable filters in the lineup but is distinguished by its specific frequency range and connector configuration. The product line focuses on providing reliable RF filtering solutions for various industrial and communication applications.

FAQ

What is the connector type for the SBRF-0500-1000-01-N?

The SBRF-0500-1000-01-N uses N female connectors.

Is the SBRF-0500-1000-01-N a fixed or tunable filter?

It is a tunable band reject filter, allowing adjustment of the rejection frequency within its operational range.
