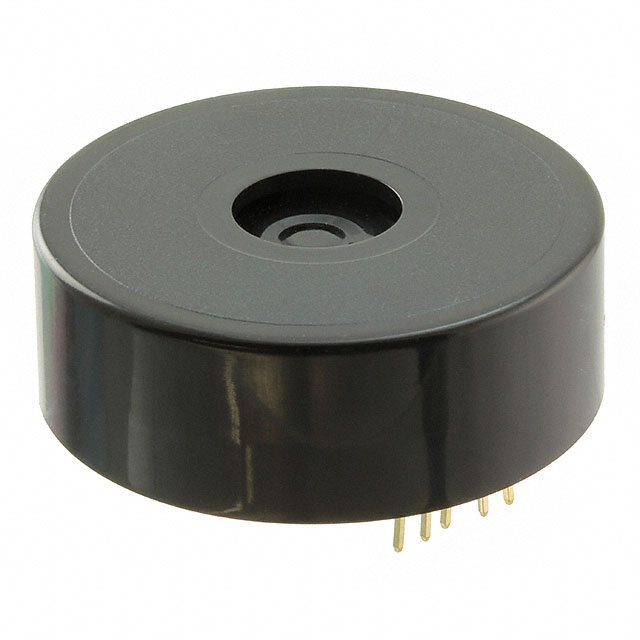

SBS12LMMCPC

$32.74

Description：BUZZER MAGNETIC 44.45MM TH
Series：-
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:b26cb6a899f9 Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER MAGNETIC 44.45MM TH
Series：-
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：2.075kHz
Technology：Magnetic
Operating Mode：Pin Selectable
Duration：Variable
Sound Pressure Level (SPL)：95dB @ 9V, 10cm
Current - Supply：40 ~ 200mA
Port Location：Top
Operating Temperature：-30°C ~ 65°C
Approval Agency：cUL, UL
Ratings：Medical
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.591" (15.00mm)
Voltage - Rated：-
Voltage Range：9 ~ 12V
Size / Dimension：1.750" Dia (44.45mm)

Download product information

SBS12LMMCPC

Overview

The SBS12LMMCPC is a piezoelectric buzzer from Mallory Sonalert Products Inc., designed for audible signaling applications. It operates on a DC input voltage range of 9V to 12V and draws an operating supply current of 200mA. The device generates a sound pressure level of 95dB at a selectable frequency between 150Hz and 4000Hz, with a typical center frequency of 2.075kHz. It utilizes through-hole pin termination for PCB mounting and features top port location for sound emission. The component holds cUL and UL approval agency certifications.

Feature Summary

Piezoelectric technology with internal driver circuitry
Selectable frequency output capability
Through-hole pin termination for board installation
Certified by cUL and UL agencies

Applications

Industrial alarm systems
Medical device audio indicators
General purpose audible alerts

Procurement Notes

Verify the specific frequency setting required for your application, as the SBS12LMMCPC supports a selectable frequency range. Confirm that the 200mA operating current aligns with your power supply capabilities. Ensure the through-hole pin spacing matches your PCB layout design before finalizing procurement.

Selection Notes

Select this component when a high-intensity 95dB signal is necessary within a 9V-12V system. The selectable frequency feature allows customization for distinct alert tones. Consider the 200mA current draw during power budgeting. Verify that through-hole mounting is compatible with your assembly process compared to surface-mount alternatives.

Part Context

This part belongs to the Mallory Sonalert audio indicator portfolio, which includes various piezoelectric buzzers and speakers. The series offers options for different voltage ranges, sound levels, and mounting styles. The SBS12LMMCPC specifically addresses needs for robust, certified audible alarms in industrial and medical environments requiring reliable performance.
