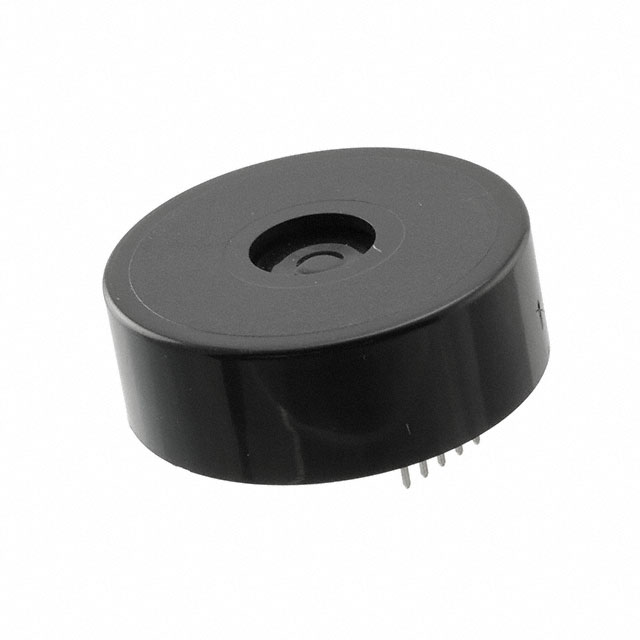

SBS12LMMDPC

Overview

The SBS12LMMDPC is an industrial-grade audio indicator manufactured by Mallory Sonalert Products Inc. It operates within a DC voltage range of 9 to 12 volts and delivers a sound pressure level of 95 decibels at 9 volts measured at a distance of 10 centimeters. The device features a selectable DC pin configuration and draws an operating supply current of 200mA. It is designed for through-hole mounting and includes internal drive circuitry. The unit is recognized under IEC60601-1-8 standards specifically for drug or fluid delivery melody applications.

Feature Summary

• Compliant with IEC60601-1-8 standards for medical alarm signaling
• Configured for drug or fluid delivery melody output
• Supports selectable DC pin interface options

Applications

• Medical device failure alarms
• Ventilator status indicators
• Drug delivery system alerts
• Fluid monitoring alarms

Procurement Notes

Verify the specific IEC60601-1-8 recognition status and melody configuration against the official datasheet before integration. Confirm that the 200mA supply current requirement aligns with the target power budget. Ensure the through-hole package dimensions match the PCB layout constraints. Cross-reference the approved agency markings, such as cUL and UL, with regulatory requirements for the final equipment assembly.

Selection Notes

Select this component when a dedicated medical-grade audio indicator is required for critical care environments. The 95dB output ensures audibility in noisy clinical settings. The specific melody configuration addresses regulatory needs for distinct alarm differentiation. Consider the 200mA current draw when designing the power distribution network for the host device.

Part Context

This part belongs to the Mallory Sonalert SBS series, which expands the portfolio of surface-mounted and through-hole transducers. The series includes various audio indicators and audible/visual alarms designed for industrial and medical applications. The SBS12LMMDPC represents the specialized segment focused on compliant medical alarm signaling rather than general purpose indication.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing enclosure mounts and electrical interfaces if considering alternative models from the same manufacturer family.
