SBS12M1PC

Overview

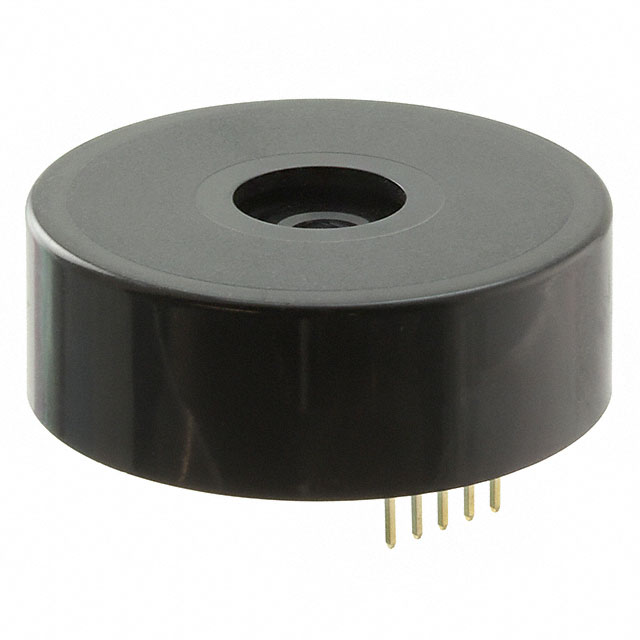

The SBS12M1PC is a piezoelectric medical alarm manufactured by Mallory Sonalert Products Inc. It operates on a DC input voltage range of 9V to 12VDC with a current consumption of 630mA. The device produces a sound pressure level of 95dBA and functions within a frequency range of 150Hz to 4000Hz. It features through-hole pin termination for panel mounting.

Feature Summary

• Internally driven piezoelectric alarm design
• Medical grade construction
• Pulse output capability

Applications

• Medical equipment audio alerts
• Industrial panel alarms
• Consumer electronics indicators

Procurement Notes

Verify the specific datasheet version for the SBS12M1PC, as online listings may contain conflicting package information such as SOT-23 which contradicts the standard through-hole pin configuration described in primary product attributes. Confirm RoHS compliance status directly with the manufacturer or authorized distributor before procurement, as some sources indicate non-compliance while others suggest lead-free construction.

Selection Notes

Select this component when a high-intensity 95dBA audible alert is required for medical or industrial applications. Ensure the power supply can deliver the specified 630mA current at 9-12VDC. Verify that the through-hole pin mounting style fits the target PCB or panel layout constraints.

Part Context

This part belongs to the SBS series of piezoelectric alarms from Mallory Sonalert Products Inc., known for robust audio indicators. The series is widely used in environments requiring reliable, high-decibel warning signals. Mallory Sonalert has a long history in producing audio and visual warning devices since the 1960s.

Replacement Considerations

Consult official Mallory Sonalert documentation for direct cross-references. Generic replacements may not match the specific 95dBA SPL or 630mA current draw requirements.
