SBS9080-509T

Common Mode Chokes Overview

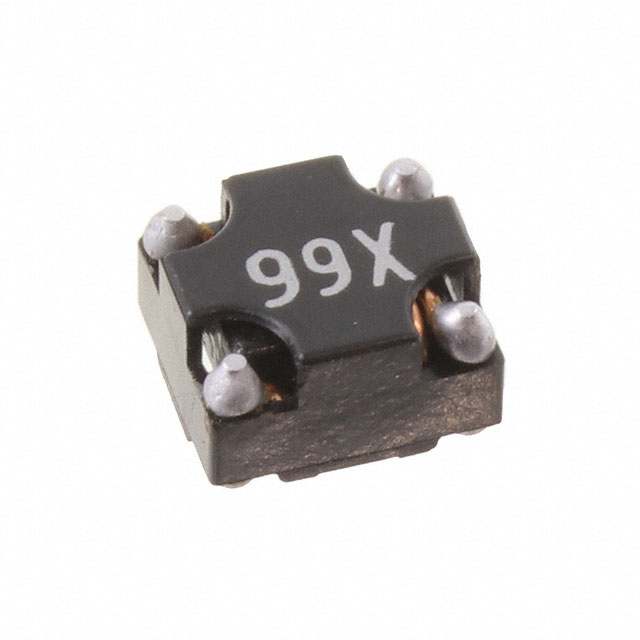

The KEMET SBS9080-509T is a surface-mount common mode choke designed for DC line filtering applications. It features an inductance of 900 nH at 100 kHz and supports a current rating of 5 A with a maximum DC resistance (DCR) of 15 mOhm. The component operates within a voltage range up to 50 V DC. Physically, it utilizes a horizontal package configuration with dimensions of 9.7 mm length, 8.7 mm width, and 5.4 mm height. The device is constructed on a four-pad PCB layout suitable for automated assembly processes.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for differential signal lines
• Optimized low DC resistance minimizes power loss in high-current circuits
• Horizontal surface-mount footprint facilitates compact board layout

Common Mode Chokes Applications

• DC line filtering in electronic equipment
• Noise suppression in data transmission interfaces
• Power supply input/output protection circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest datasheet to ensure compatibility with design requirements. Confirm that the operating temperature range meets system specifications, as environmental conditions may affect performance. Check for any recent lifecycle status updates or obsolescence notices before finalizing procurement plans.

Common Mode Chokes Selection Notes

Select this component when low inductance values are required for high-speed signal integrity alongside moderate current handling capabilities. The 5 A rating suits applications where space constraints preclude larger through-hole alternatives. Ensure the PCB pad layout matches the specified horizontal package dimensions to guarantee proper soldering and mechanical stability during operation.

Common Mode Chokes Part Context

This component belongs to the SBS9080 series of common mode chokes from KEMET. The series focuses on providing compact filtering solutions for modern electronics requiring efficient noise reduction without significant impedance to differential signals. These components are engineered for reliability in consumer and industrial electronic assemblies.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameters if considering alternative manufacturers.
