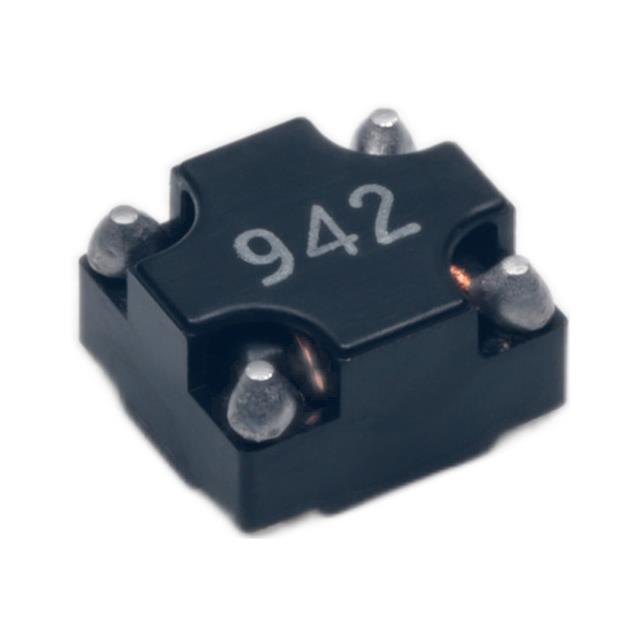

SBS9080-524T

Description：IND COMMON MODE CHOKE SMD
Series：SBS9080
Mfr：KEMET
Package：Tape & Box (TB)

SKU:64d7abdfa24a Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SBS9080-524T is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is IND COMMON MODE CHOKE SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for SBS9080-524T

Description：IND COMMON MODE CHOKE SMD
Series：SBS9080
Mfr：KEMET
Package：Tape & Box (TB)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：15mOhm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 50°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.382" L x 0.343" W (9.70mm x 8.70mm)
Height (Max)：0.213" (5.40mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for SBS9080-524T

SBS9080-524T

Common Mode Chokes Overview

The KEMET SBS9080-524T is a surface-mount common mode choke designed for power line filtering. It features a toroidal coil structure suitable for noise countermeasures in DC applications. The component measures 9.70mm in length, 8.70mm in width, and has a maximum height of 5.40mm. It is classified under ECCN EAR99 and utilizes a surface mount mounting type.

Common Mode Chokes Feature Summary

Surface-mount toroidal coil design
Suitable for DC power line noise countermeasures

Common Mode Chokes Applications

DC power line filtering
Noise countermeasure applications

Common Mode Chokes Part Context

This component belongs to the KEMET SBS9080 series of common mode chokes. The series offers various characteristics tailored for surface mount configurations. The specific model SBS9080-524T is identified within this product line for power line filtering tasks.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verification of compatible alternatives requires consulting official manufacturer substitution guides or datasheets.
