SBT-0160W

Common Mode Chokes Overview

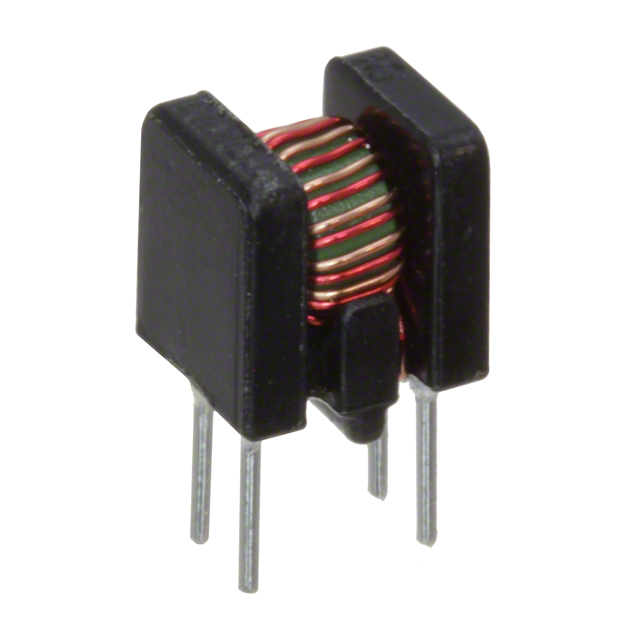

The KEMET SBT-0160W is a through-hole common mode choke from the SBT-01W series. It features an inductance of 60 µH with a tolerance of 35%. The component supports a maximum DC current of 500 mA and has a maximum DC resistance of 45 mOhms. It operates within a temperature range of -25°C to +105°C and is rated for 50V DC.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for signal lines
• Utilizes vertical through-hole mounting style
• Encapsulated design for reliability

Common Mode Chokes Applications

• Signal line filtering
• Common mode noise reduction in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the SBT-01W series to confirm exact electrical tolerances and thermal ratings. Ensure the selected component meets the required DC current and impedance specifications for the target application circuit. Confirm RoHS compliance status as indicated in official manufacturer documentation.

Common Mode Chokes Selection Notes

Select this component when a 60 µH inductance at 500 mA is required for common mode filtering. Consider the 45 mOhm DCR for power loss calculations. Verify that the 50V rating aligns with the system voltage requirements. Check physical dimensions for PCB layout compatibility.

Common Mode Chokes Part Context

This part belongs to the KEMET SBT-01W series of common mode chokes. These components are designed for general-purpose signal filtering applications. The series offers various inductance values and current ratings to suit different circuit needs while maintaining a compact vertical form factor.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides or equivalent manufacturer catalogs for verified alternatives. Ensure replacement parts match the 60 µH inductance, 500 mA current rating, and 45 mOhm DCR specifications.
