SBT12M1PC

Overview

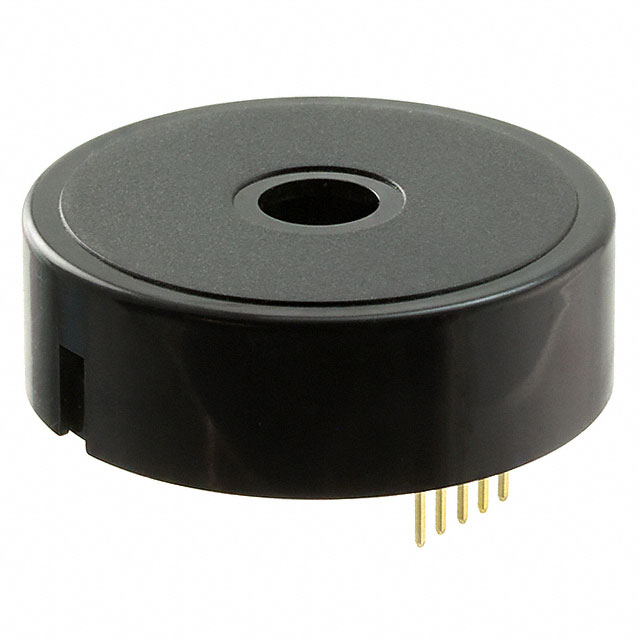

The SBT12M1PC is a piezoelectric buzzer from the Mallory Sonalert SBT series, designed for through-hole mounting. It operates on a DC input voltage range of 9 to 12 volts and draws a current between 46 and 150 mA. The device produces a continuous tone at a frequency of approximately 3 kHz with a sound pressure level of 95 dB. It features internal drive circuitry, allowing direct connection to power sources without external oscillators. The unit utilizes PC pin termination for secure board attachment.

Feature Summary

• Internal drive circuitry enables direct DC operation without external components
• Piezoelectric transducer technology ensures reliable acoustic output
• Through-hole PC pin termination provides robust mechanical mounting

Applications

• Industrial equipment status indication
• Medical device audio alerts
• Consumer appliance signaling

Procurement Notes

Verify the specific suffix 'M1PC' against official Mallory Sonalert documentation to confirm exact electrical tolerances and acoustic characteristics. Ensure the ordering part number matches the required voltage and current specifications for the target application environment. Cross-reference datasheet revisions to confirm compliance with relevant safety standards.

Selection Notes

Select this component when a high-intensity 95 dB audible alert is required within a 9-12V DC system. The internal driver simplifies schematic design by eliminating the need for external oscillator circuits. Consider the physical dimensions and through-hole requirements during PCB layout to ensure adequate clearance for the PC pins and housing.

Part Context

This component belongs to the SBT series of industrial-grade audio indicators manufactured by Mallory Sonalert Products Inc. The series is characterized by robust construction suitable for demanding environments. The manufacturer specializes in audio and visual warning devices for medical, industrial, and transportation sectors.

Replacement Considerations

Consult official Mallory Sonalert substitution guides for verified equivalents. Generic replacements may differ in acoustic output or drive requirements.
