SBT5GLPC

$34.82

Description：BUZZER PIEZO 44.45MM TH
Series：SBT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:c462daa2b154 Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BUZZER PIEZO 44.45MM TH
Series：SBT
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：150Hz ~ 4kHz
Technology：Piezo
Operating Mode：-
Duration：Repeating every 30 Sec
Sound Pressure Level (SPL)：85dB @ 3.3V, 10cm
Current - Supply：35mA
Port Location：Top
Operating Temperature：-30°C ~ 65°C
Approval Agency：cUL, UL
Ratings：Medical
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.551" (14.00mm)
Voltage Range：3.3 ~ 5V
Size / Dimension：1.750" Dia (44.45mm)

Download product information

SBT5GLPC

Overview

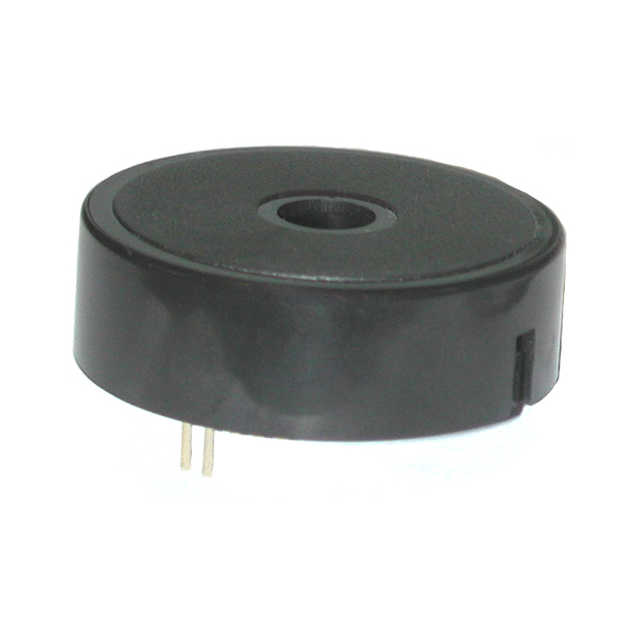

The SBT5GLPC is a piezoelectric buzzer manufactured by Mallory Sonalert Products Inc. It operates within an IEC voltage range of 3.3V to 5VDC and delivers a sound pressure level of 90dB. The device features a diameter of 44.45mm and functions reliably across a temperature range of -30°C to +65°C. Designed for board-mount applications, it complies with RoHS standards and provides general alarm audio indication.

Feature Summary

Piezoelectric transducer technology for reliable audio generation
Compliant with IEC electrical standards for low-voltage operation
RoHS compliant construction for environmental safety

Applications

General alarm indication in electronic systems
Medical device audio signaling
Industrial equipment status alerts

Procurement Notes

Verify the specific suffix requirements against official Mallory Sonalert documentation before ordering. Confirm that the standard package configuration meets your assembly needs. Ensure compatibility with the target operating voltage range of 3.3V to 5VDC. Check for any regional distribution restrictions or supply limitations associated with this component number.

Selection Notes

Select this model when a 90dB output is required for general alarms. The 44.45mm form factor suits standard panel or board layouts. Verify thermal tolerance requirements against the -30°C to +65°C operational range. Ensure the application does not require specialized medical melodies or higher voltage ratings.

Part Context

This component belongs to the SBT series of surface-mounted audio indicators from Mallory Sonalert. The series includes various acoustic outputs tailored for industrial and medical environments. The SBT5GLPC specifically addresses general alarm needs with standardized IEC voltage compatibility.

Replacement Considerations

Consult official Mallory Sonalert substitution guides for verified equivalents. Generic replacements may not match the 90dB output or 44.45mm dimensions. Verify pinout and mounting hole patterns before swapping components.
