SC-01-06G

Common Mode Chokes Overview

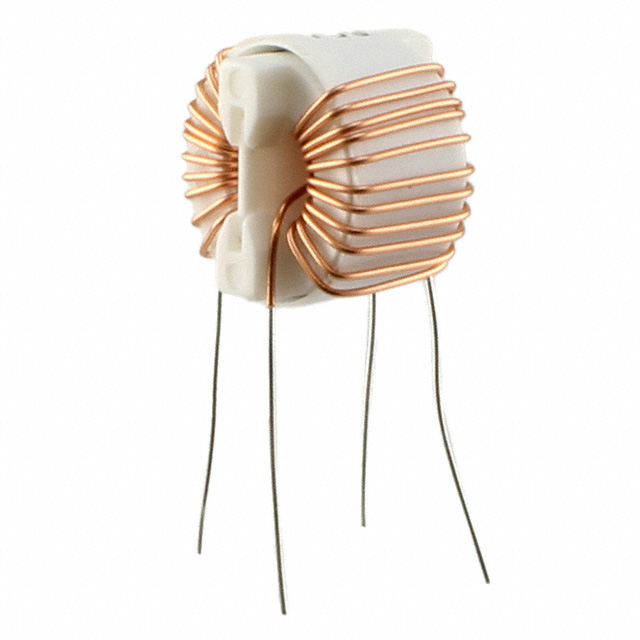

The KEMET SC-01-06G is a through-hole common mode choke designed for AC line filtering applications. It features a dual-line configuration with an inductance of 600 µH at 100 kHz and a maximum DC resistance of 0.06 ohms. The component supports a maximum current rating of 1 A and operates within a temperature range of -40°C to 105°C. It has a DC voltage rating of 250 V and an AC voltage rating of 250 V. The device utilizes a flame retardant cap rated UL 94 V-2.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for AC power lines
• Constructed with a flame retardant housing meeting UL 94 V-2 standards
• Designed for through-hole mounting on printed circuit boards

Common Mode Chokes Applications

• AC line filtering in electronic equipment
• Common mode noise reduction in power supply inputs
• EMI suppression for dual-phase AC circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version from KEMET or authorized distributors to confirm exact mechanical dimensions and pin configurations. Ensure the selected component matches the required 600 µH inductance and 1 A current rating for the target application. Check for any RoHS compliance status updates, as historical data indicates potential variations in regulatory certification across different production batches.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode chokes for AC line protection with a 1 A current capacity. The 600 µH inductance value is suitable for standard EMI filtering frequencies around 100 kHz. Consider the through-hole package type if PCB layout constraints favor axial or radial leaded components over surface mount alternatives. Verify that the 250 V voltage rating aligns with the local mains voltage requirements.

Common Mode Chokes Part Context

The SC-01-06G belongs to KEMET's series of common mode chokes intended for power line filtering. These components are engineered to attenuate electromagnetic interference generated by switching power supplies and other noisy loads. The product line typically offers various inductance values and current ratings to accommodate different power levels and noise profiles in consumer and industrial electronics.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Engineers should consult KEMET's official cross-reference tools or contact technical support directly to identify equivalent components with matching electrical specifications and form factors.
