SC-01-10G

Common Mode Chokes Overview

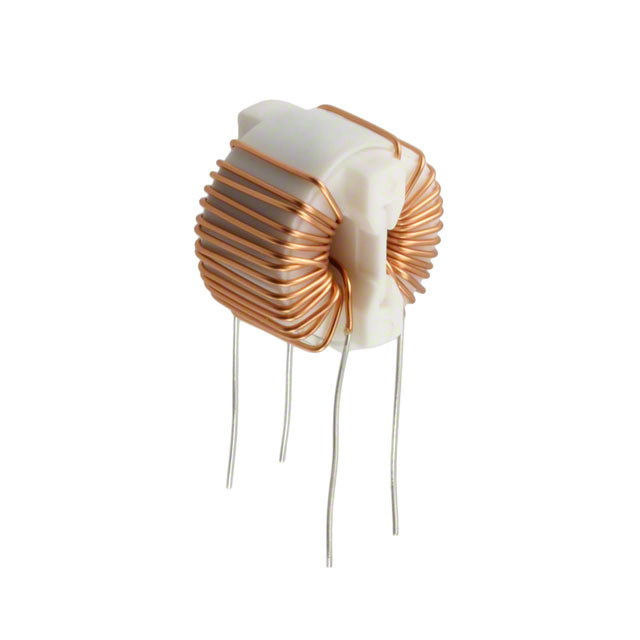

The KEMET SC-01-10G is a through-hole common mode choke belonging to the SC-G/GS series. It features a toroidal core design with an inductance of 1,000 uH (1 mH) measured at 100 kHz. The component supports a current rating of 1 A and exhibits a DC resistance of 70 mOhm. Designed for power line filtering applications, it utilizes nanocrystalline metal core technology to achieve ultra-high inductance and permeability characteristics suitable for three-phase systems.

Common Mode Chokes Feature Summary

• Utilizes nanocrystalline metal core technology for enhanced magnetic performance
• Provides ultra-high inductance and permeability for effective noise suppression
• Designed as a three-phase line filter for power applications

Common Mode Chokes Applications

• Three-phase power line filtering
• Common mode noise suppression in power circuits
• EMI reduction in industrial power systems

Common Mode Chokes Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KEMET or authorized distributors, as regulatory certifications may vary by production batch. Confirm that the through-hole mounting style and physical dimensions align with your PCB layout requirements before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when high inductance values are required for common mode noise attenuation in power lines. The 1 A current rating and low DC resistance make it suitable for moderate power applications. Ensure the operating frequency range includes 100 kHz for accurate inductance specification adherence.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-G/GS series of common mode chokes. These components are engineered for robust performance in demanding environments, leveraging advanced nanocrystalline materials to deliver superior filtering capabilities compared to traditional ferrite cores in similar form factors.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the SC-G/GS family or equivalent nanocrystalline core chokes from other manufacturers. Verify that replacement parts match the 1,000 uH inductance, 1 A current rating, and through-hole package constraints.
