SC-01-10GS

Common Mode Chokes Overview

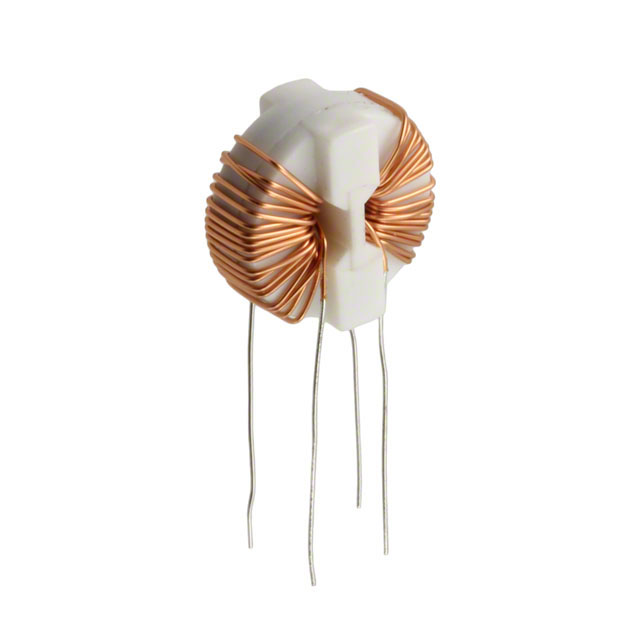

The KEMET SC-01-10GS is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 1 mH measured at 100 kHz and supports a maximum current rating of 1 A. The component has a DC resistance (DCR) of 130 milliohms and is rated for 250 V AC/DC. It utilizes a vertical, baseless package with four pins, measuring 15.00 mm in diameter and 8.50 mm in width. The operating temperature range spans from -40°C to +105°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line AC power circuits
• Constructed for reliable through-hole mounting on printed circuit boards
• Operates within a wide industrial temperature range

Common Mode Chokes Applications

• AC power line input filtering
• Electromagnetic interference suppression in consumer electronics
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the specific suffix GS against the manufacturer's datasheet to confirm pin configuration and mechanical dimensions. Ensure the selected component meets the required voltage ratings and current handling capabilities for the target application. Confirm RoHS compliance status if restricted substances are a constraint for the assembly process.

Common Mode Chokes Selection Notes

Select this component when a 1 mH inductance value is required for common mode noise reduction in low-current AC applications. The 1 A current rating and 130 milliohm DCR define the thermal and efficiency limits. Consider the through-hole form factor and vertical orientation constraints during PCB layout design to ensure adequate clearance and mechanical stability.

Common Mode Chokes Part Context

This part belongs to the KEMET SC-G/GS series of small type common mode chokes. The series offers various inductance values tailored for different filtering requirements while maintaining a compact footprint suitable for space-constrained electronic designs.

Common Mode Chokes Replacement Considerations

Cross-reference with KEMET SC-01-E150G or similar series members for alternative inductance values. Verify mechanical compatibility and electrical specifications before substituting with components from other manufacturers.
